Used machines for sale

Industrial seasoning injector Intermec

>> Injectors for meat seasonings

Industrial seasoning injector Intermec
Industrial seasoning injector Intermec

Industrial seasoning injector Intermec

Need maintenance technician, revision and warranty? Click here.

Necessita financiar máquinas?
Click here.

Machine code:
225-042
 UNAVAILABLE

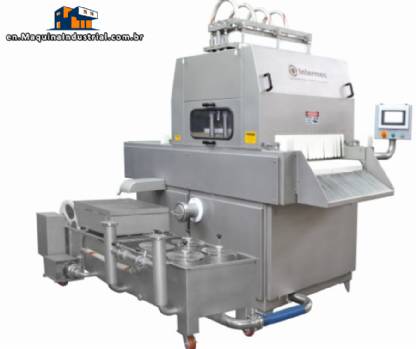

Industrial seasoning injector.

With seasoning mixer.

Brand: Intermec.

Model: AMF 900.

Seasoning mixer.

Injector: Approximate production of up to 8,000 kg / hour.

Mixer: Capacity of up to 1,000 liters.

Construction: In stainless steel 304 except motors, reducers, chains, gears, hydraulic unit.

TECHNICAL CHARACTERISTICS

Measures (L X W X H): 3.100mm X 2.250mm X 2.370mm

Useful track width: 900mm

Maximum product passage: 230mm

Adjustable head speed: 5 to 20 strokes per minute

Number of needles: 638 pieces

Needle diameter: 3.50mm

Needle Type: Individual

Centrifugal sanitary pump

Pressure: 0 to 4 Bar

Brine reservoir: 600 liters

Power: 37,75 HP (28,15KW)

Approximate production: Up to 8,000 kg / hour

The production of the injector is conditioned on the speed adopted on the conveyor and head, with the filling
total and the level of injection into the product.

Drive: Hydraulic drive via piston

Passage adjustment: sensor beams with manual adjustment of 50/100/150 and 200mm allow passage
of various types of products optimizing production time and gain

Treadmill: mechanically driven by a gear motor, blue polyethylene mat, stainless steel structure
304 stainless steel removable for cleaning

Filtration: composed of a collecting sieve, a rotary filter with self-cleaning system, three type sieves
drawer and two final suction filters with one register each (system that allows cleaning without interruption of the
production).

All built in stainless steel.

Pump: ultra-quiet sanitary centrifugal type built in stainless steel, with a power of 20HP pressure of
work from 0 to 4 BAR.

Injection control adjustable by frequency inverter and monitored by pressure gauge.

Blocking valve: pneumatic seasoning blocking valve releases the product to be injected during regulation
determined by the hydraulic cylinder of the head in 50mm, 100mm, 150mm, 200mm and 230mm.

Head and needles: high performance system with pressurized chamber equalizing pressure and flow
no pressure loss on the 638 needles ensuring uniform injection distribution anywhere in the
product, adjustable speed up to 20 strokes per minute.

Needles: 638 individual needles, removable for cleaning, built in stainless steel tube with hardness
Special.

Diameter of 3.5 mm.

Line filter: line filter before the needles allows them to not clog if particles pass
by the filtering process.

Safety filter: line filter before the needles allows them to not clog if they pass
particles by the filtration process.

Injection timers: adjustable injection time setting (head stopped and needles inside
product).

General electrical panel: built in stainless steel with waterproof shield attached to the internal part of the
machine.

Monitoring screen: touch sensitive 7 ’’ with alarms and automatic adjustments.

NR12: Compliant.

Specially developed to enable an operation with a mixing system for dry liquid ingredients that meets the needs of your process.

Speed, uniformity and versatility for a wide range of types and sizes of production are its excellent advantages.

Increased production, decreased energy consumption and product loss in addition to decreased reprocessing are
exclusive results.

Can be used in continuous processes, as well as in conversations, when there is a need for recirculation
and when it is necessary to add more viscous liquids, it can be used to prepare and mix it with the
final product.

This means that in many cases, pre- and post-mixing can be eliminated, as well as the
hardening, foaming and overflow.

TECHNICAL CHARACTERISTICS:

Diameter 1,500 mm.

Height 1,700 mm.

Capacity 1000 liters.

Power 3 CV.


Brand:
Intermec
