| Steam-generating boiler LPG gas ETNA |
|

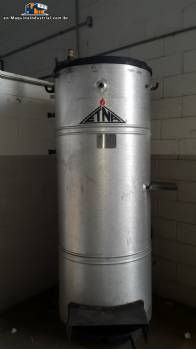

Steam-generating boiler LPG gas ETNA.
Model: GV-200.
Fuel: Lpg.
Semi new, with a short time of use.
Year: 5/4/2012.
Technical description:
-steam production water 20° C: 200 Kg/h
-steam production 80° C water: 220 Kg/h
-effective thermal input: 132,400 Kcal/h
-rated thermal input: 155,764 Kcal/h
-LPG gas consumption: 13.31 Kg/h? 280 mm pressure
-heating surface: 9.2 m ².
-working pressure: 8.0 Kgf/cm ².
-test pressure: 12.0 Kgf/cm ².
-water intake: Ø 3/4? /BSP thread.
-steam outlet: Ø 1.1/2 BSP thread.
-Drain: Ø 1-BSP thread.
2-safety valves: 3/4 Ø/thread BSP.
-LPG gas supply pipe: Ø 3/4 BSP thread.
-type: tubular/cylindrical/vertical fire-01 fire pass.
-electric Voltage: 220 V/3-phase/single-phase 220 V/command.
-manufacturing Standards: ASME/MANUFACTURER.
-project Code: ASME section VIII Division I//
-category of the vessel (NR-13): v.
size:
-height: 2,570 mm.
-width: 1,550 mm.
-gas Output: 290 mm.
-weight (empty): 900 Kg. |
Brand:
ETNA
|
|
|
Main applications:
Automation
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
