Industrial steam boilers
Industrial boilers are fundamental equipment in various industrial sectors, being used to generate steam or hot water. They play a crucial role in heating, sterilization, power generation and other industrial procedures. We will cover their functions, operating principles and some common types of industrial boilers.

Function of Industrial Boilers:

Steam Generation:

The main function of boilers is to produce steam, which can be used to power turbines in power plants, heat industrial environments, sterilization processes, among others.

Water Heating:

Boilers are also used to heat water, providing hot water for industrial processes, heating systems or even for direct consumption.

Working Principles:
The basic operation of an industrial boiler involves burning a fuel to generate heat, which is transferred to water, resulting in the production of steam. Key elements include:

Burner:

Responsible for burning fuel, be it gas, oil, coal, biomass, or others.

Heat exchanger:

The area where heat transfer from fuel to water occurs. It can be of the tubular type, where hot gases pass through tubes immersed in water, or of the drum type, where water circulates around a drum containing the tubes.

Combustion Chamber:

Place where fuel burns, providing heat.

Control system:

Regulates the amount of fuel and air to maintain the desired temperature and avoid unsafe operations.

Types of Industrial Boilers:

Watertube Boilers:

They have water tubes that surround the combustion chamber. They are efficient in large-scale steam production.

Fire tube boilers:

Smoke tubes pass through water, providing greater efficiency in low pressure applications.

Hot Water Boilers:

Designed to provide hot water, not steam. They are common in central heating systems.

Heat Recovery Boilers:

They capture residual heat from exhaust gases to increase energy efficiency.

Recovery Steam Boilers:

Used to recover steam from industrial processes for reuse.

Biomass Boilers:

They burn organic waste such as biomass to generate heat. They can be fed with wood, sugarcane bagasse, among others.

Gas Boilers:

They use gas as fuel, common in industrial applications where natural gas is available.

Electric Boilers:

They convert electrical energy directly into heat, making them useful in places where other forms of fuel are impractical.
Each type of boiler is chosen based on the specific needs of the industrial application, taking into account factors such as required pressure, production capacity, type of fuel available, energy efficiency and operating costs.
Hot water generator ICI Caldai
Hot water generator ICI Caldai

Machine code: 867-818

Hot water generator.

Brand name: ICI Caldai.

Model: Rex 25.

Combustible LPG.

For full technical description, download the manufacturer link and search for mod...
Vertical boiler with GLP gas West
Visualizar Vídeo Vertical boiler with GLP gas West

Machine code: 504-338

Brand: West equipamentos

Vertical boiler with GLP gas.

Brand: West.

Capacity: 200 kg / hour.

Year: 2014.

With burner....
Boiler for steam production Etna 70 kg / h LPG
Boiler for steam production Etna 70 kg / h LPG

Machine code: 136-176

Brand: ETNA

Boiler for steam production.

Manufacturer: Etna.

Approximate capacity: 70 kg/h LPG.

Year: 2020.

Operated less than 200 hours.

The flame controller was exchanged from an analogue model to a fullgauge digital one....
Termus boiler
Termus boiler

Machine code: 565-020

Boiler with chimney and condensed tank.

Brand: TERMUS.

Model: TCC 15/3 CMG.

Fuel: LPG gas.

Capacity: 300,000 Kcal/H.

Flow: 470 kcal/H.

Year of Manufacture: 1988....
Lidgerwood Boiler
Lidgerwood Boiler

Machine code: 821-506

Brand: Lidgerwood

Wood burning boiler.

W.V.V. LIDEREWOOD.

Steam with flow rate 500/600.


...
Complete line of cosmetics industry
Complete line of cosmetics industry

Machine code: 672-663

Brand: Balmak, IKA, Silk Mac, Toledo, Topp Inox

Industry complete cosmetics factory.

Composed by:

- Jacketed 316 stainless steel reactor.

Manufacturer: Topp Inox.

Approximate capacity: 1,100 liters.

- Jacketed 316 stainless steel reactor.

Manufacturer: Topp Inox.

Approximate c...
Industrial boiler to generate steam
Industrial boiler to generate steam

Machine code: 517-551

Industrial boiler to generate steam for underground firewood fuel.

All new components.

Value production: 1000 kg steam hour.

New panel.

New valves.

With documentation....
Complete line for cassava production
Complete line for cassava production

Machine code: 314-108

Brand: Hobart, JHM, Milainox

Complete line for the production of cork type cassava.

Approximate capacity: up to 375 kg / h.*
*3 tons per day.

Line composed of:

- Stainless steel pans. (4 units to confirm availability).
Approximate capacity: 300 liters.

With winch a...
Complete industry company for coffee roasting and grinding
Complete industry company for coffee roasting and grinding

Machine code: 781-111

Brand: ABIS Machines, Jocar

Complete company / industry for coffee roasting and grinding.

Line for coffee roasting, grinding and packaging.

Approximate production: from 1500 to 2500 kilos a day.

Composed by:

- Coffee roaster.
Manufacturer: Play.
Model: Ecological....
Complete line for pasta making
Complete line for pasta making

Machine code: 525-180

Brand: Braibanti, Fabrima, Giacomet, Morganti, Ricciarelli

Complete line for pasta manufacturing.

Spaghetti line.

Brand: Braibant.

Approximate capacity 500 kg/hour.


01 map (stainless steel) with an approximate capacity of 500 kg/hour cut.

Equipments:

Drying tunnel for spaghetti.

Comple...
Hot water boiler Etna
Hot water boiler Etna

Machine code: 525-370

Brand: ETNA

Components: Dungs

ndustrial boiler.

Brand: Etna.

Model: GMR - 300.

Year: 2005.

M.W.A.: 4.0 kgf / cm. (³)

P. Test: 4.0 kgf / cm (³)

Fuel: LPG.

Thermal power: 300,000 Kcal / h.

Consumption: 30.0 kg / h.

Components:

Dungs....
Gas boiler for 1040 kg h Tenge
Gas boiler for 1040 kg h Tenge  [unavailable

Machine code: 572-887

Brand: Tenge

Boiler for steam generation.

Brand: Tenge.

With gas burner GLP / PCS.

Calories: 12,000 Kcal / kg.

Maximum consumption: 65 kg / h.

Working pressure of 10.5 kg / cm2.

Year 1993....
Boiler brand Ata for 1000 Kgv / h
Boiler brand Ata for 1000 Kgv / h  [unavailable

Machine code: 428-161

Brand: Ata

Industrial boiler for steam production.

- Mark: Minutes.

- Year: 2000.

- Capacity: 1000 kgv / h.

- Boiler fueled by firewood.

- Equipment was operating, therefore, has boiler book and ART....
Steam-generating boiler LPG gas ETNA
Steam-generating boiler LPG gas ETNA  [unavailable

Machine code: 364-152

Brand: ETNA

Steam-generating boiler LPG gas ETNA.
Model: GV-200.
Fuel: Lpg.
Semi new, with a short time of use.
Year: 5/4/2012.
Technical description:
-steam production water 20° C: 200 Kg/h
-steam production 80° C water: 220 Kg/h
-effective ther...
Firetube boiler for wood
Firetube boiler for wood  [unavailable

Machine code: 504-203

Brand: Conservit

Firetube boiler for wood.
Brand: Conservit.
Nominal output: 1500 kg steam per hour (with 750)
nominal working pressure: 10 kgf/cm ² (recommended up to 6)
length: 4 m
width: 2 m
without the chimney Height: 2.5 m....
Stainless steel boiler wood
Stainless steel boiler wood  [unavailable

Machine code: 650-432

Wood boiler.
Capacity of 400 kg.
New....
Industrial boiler
Industrial boiler  [unavailable

Machine code: 556-567

Industrial boiler....
Boiler Ata 2h3
Boiler Ata 2h3  [unavailable

Machine code: 360-371

Brand: Ata

Boiler Ata-2 h-3
Year-1976
vapor 500 kg/h

k12k * P.M.T. *: P: 10.55 kgf/cm ²
: 15.85 kgf/cm ²

heating surface: 15 m ²

Name
tubular fire boiler Boiler consists of horizontal cylindrical body, with gas-passing pipes, and furnace pla...

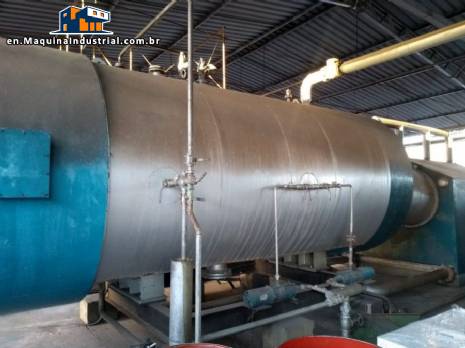

Eônia wood boiler KGV 2,000 per hour
Eônia wood boiler KGV 2,000 per hour  [unavailable

Machine code: 102-040

Brand: Eônia

Boiler wood 2000 EONIA KGV/H
make/model-EONIA/E-50
construction reference-3 Horizontal fire Passes
production capacity with water 20° C-2300 Kgv/h
maximum working pressure-10.00 kgf/cm2 or 140 lb/pol2
or proof pressure test-15.00 kgf/cm2 or...
ATA boiler shell
ATA boiler shell  [unavailable

Machine code: 305-157

Brand: Ata

Boiler ATA hull 5000 KG/H....
Clayton steam generator
Clayton steam generator  [unavailable

Machine code: 423-400

Brand: Clayton

Steam generator.

Brand Name: Clayton.

Steam production: 1,300 kg / h.

Model: Who.100.

Series: 214.

Year of manufacture: 1975.

Voltage: 220 V.

Phases: 3....
Steam boiler/steam generator
Steam boiler/steam generator  [unavailable

Machine code: 484-048

Brand: Ata

Steam boiler/steam generator
Description: vaporação surface: 100 m ², 3 steam Deduction, 300Kgf/hr, 18 Ata-model H-3...
Industrial boiler for steam generation 3.000 kgv Ata
Industrial boiler for steam generation 3.000 kgv Ata  [unavailable

Machine code: 000-870

Brand: Ata

Industrial boiler for steam generation.

Brand: Ata.

Capacity: 3,000 kgv / h.

Model: ATA - 17.

Year: 1983....
Industrial boiler J G equipamentos
Industrial boiler J G equipamentos  [unavailable

Machine code: 254-607

Brand: J.G Equipamentos de Vapor

Components: Danfoss, Incoetermic

Industrial steam generator.

Brand: J G equipment.

P.M.T.P: 10.

Kg / cm 2: 150 psi.

Heating surface: 7.15 m².

Steam production: 432 kg / h.

Generator category: B.

Phases: 3.

Voltage: 220V.

Herts: 60.

Amperes: 6.
...
Boiler to generate steam 400 kg h W.V.W
Boiler to generate steam 400 kg h W.V.W  [unavailable

Machine code: 407-774

Brand: Multinox, W.V.W

Components: Brasiltec, Coel, Ksb, Siemens

Boiler to generate steam.

Brand name: W.V.W.

Model: 2PA400.

Year: 2016.

Equipment manufactured and never used.

Capacity: 400 KGV / H.

PMTA: 6 KGF / CM².

S: 5.5 KGF / CM².

P.T.H: 9 KGF / CM².

Components:

Siemens Sirius.
...
Steam generator J G equipamentos
Steam generator J G equipamentos  [unavailable

Machine code: 331-343

Brand: J.G Equipamentos de Vapor

Steam generator JG EG-16.

heat Production-193,194 Kcal/h.

Evaporation with water at 115° C-216 kg steam per hour.

steam operation pressure 150 PSI-65a.

fuel consumption.

LPG Gas-14.00 kg/h

natural Gas-17 m ³/h.

Motor-0.75 ...
Boiler for steam generation Ata
Boiler for steam generation Ata  [unavailable

Machine code: 501-613

Brand: Ata

Boiler for steam generation.

Brand: Ata.

Model: H - 3N.

Production: 2,000 kg/h of steam.

Year: 1990.

Vaporization surface: 66m² M.P.T.A 150 pslg 10.55 kgf/cm².

Hydrostatic test: 225 pslg 15.82 kgf/cm².

Order number 8493....
Industrial wood boiler 3.000 kg / h Ata
Industrial wood boiler 3.000 kg / h Ata  [unavailable

Machine code: 455-178

Brand: Ata

Industrial wood boiler.

Brand: Ata.

Capacity: 3,000 kg / h of steam.

He worked in the soap industry.

Working pressure: 10.55 kg.

Test pressure: 15.82 kg....
Boiler for steam generation Aalborg
Boiler for steam generation Aalborg  [unavailable

Machine code: 121-600

Brand: Aalborg

Boiler for steam generation.

Brand: Aalborg.

Model: AR - 4n.

Capacity: 6.5 tons per hour.

P.M.T.A: 12.0 bar (1.05 Mpa)

Hydrostatic pressure test: 18.0 bar (1.80 Mpa)

Operating temperature: 185.

Heating surface: 137 m².

Fuel: o...
Industrial boiler for steam generation HeatMaster
Industrial boiler for steam generation HeatMaster  [unavailable

Machine code: 477-376

Brand: Heatmaster

Industrial boiler for steam generation.

Brand: HeatMaster.

Model: Turbo JET 300 HP....
Industrial boiler for steam generation ATA
Industrial boiler for steam generation ATA  [unavailable

Machine code: 288-608

Brand: Ata

Industrial boiler for steam generation.

Brand: ATA.

Model: 1977....
Industrial boiler for steam generation Aalborg
Industrial boiler for steam generation Aalborg  [unavailable

Machine code: 542-021

Brand: Aalborg

Industrial boiler for steam generation.

Brand: Aalborg.

For oil or gas.

Steam production: 8 tons / hour.

Working pressure: 10.5 kg.

Fuel: oil and gas.

Year: 1996.

Accompanies all peripherals....
Industrial boiler
Industrial boiler  [unavailable

Machine code: 727-475

Industrial boiler.

Model: GMP.

Capacity; 1,000 kg.

Fuel: oil....
Industrial boiler for steam generation CBC
Industrial boiler for steam generation CBC  [unavailable

Machine code: 300-008

Industrial boiler for steam generation.

Brand: CBC.

Model: CFT 500.

Weight: 8 tons.
...
Boiler for steam generation ATA
Boiler for steam generation ATA  [unavailable

Machine code: 570-643

Brand: Ata

Boiler for steam generation.

Brand: Ata.

Model: BM 814.

Weight: 12 tons....
Steam boiler Eonia
Steam boiler Eonia  [unavailable

Machine code: 267-622

Brand: Eônia

Steam boiler.

Brand: Eonia.

Type: Flamotubular.

Capacity: 4,000 kg / h.

Year: 2007.

Heating area: 134 m² including the furnace....
Industrial boiler Miura
Industrial boiler Miura  [unavailable

Machine code: 203-086

Brand: Miura

Industrial boiler.

Brand: Miura.

Model: LX - 200 - SG.

Production capacity of 3,165 kg / h.

Equipment quantity: 06 units.

MIURA standard economizer.

Air filter.

ASME and ULc seal stamped on each boiler.

Boiler water conductivi...
Boiler for the production of steam 500 kgv / h Lidgerwood
Boiler for the production of steam 500 kgv / h Lidgerwood  [unavailable

Machine code: 581-823

Brand: Glasgow England, Lidgerwood

Boiler for the production of steam.

Brand Name: Lidgerwood.

Manufacturer: Glasgow England.

Model: Horizontal fire.

Year: 2001.

Capacity: 500 Kgv / h....
Boiler industry to generate steam CBC
Boiler industry to generate steam CBC  [unavailable

Machine code: 336-623

Brand: CBC

Components: RIELLO BURNERS

Boiler industry to generate steam.

Brand: CBC Industria pesadas S / A.

Model: CFT 350.

It has been modified to natural gas.

Capacity: 5 tons per hour.

Working pressure: 10 BAR.

Year of manufacture: 1990.

Category B

Burner bran...
Gas boiler for 250 kg hour
Gas boiler for 250 kg hour  [unavailable

Machine code: 764-265

Brand: Technical caldeiras e serviços LTDA

Gas boiler.

Brand name: Technical caldeiras e servicios LTDA.

Year: 1995.

Model: T - V 2- Fogotubular.

Working pressure: 8.4 kgf / cm².

Proof pressure: 12.6 kgf / cm².

Are surface of vaporization: 20 m².

Steam production: 250 kgv...
Steam boiler for 12,000 kg / h SFW
Steam boiler for 12,000 kg / h SFW  [unavailable

Machine code: 511-304

Brand: SFW

Steam boiler.

Convective body of the boiler, only sheet structure.

New equipment without use.

Brand: SFW Thermic Systems.

Year: 2014.

Capacity: 12,000 kg / h.

Pressure: 8 kgf / cm².

Outside diameter (mm): 2.680.

Length (mm): 6...
Visualizar Vídeo  [unavailable

Machine code: 160-023

Brand: Heatmaster

Heatmaster boiler.

Capacity: 480 Kg / h - 3000,000 Kcal / h.

Features:

- Fuel: Firewood

- Max. Working weight: 8 Kg / cm2

- Voltage: 220 V...
Gas boiler for 300 kg h Ecal
Gas boiler for 300 kg h Ecal  [unavailable

Machine code: 135-854

Brand: Ecal

Gas boiler.

Brand: ECAL.

Capacity: 300 kg / h.

With condenser tank.

Year: 2012 / 2013....
Industrial line for production of long pasta noodle spaghetti Braibanti
Industrial line for production of long pasta noodle spaghetti Braibanti  [unavailable

Machine code: 211-625

Brand: Ata, Braibanti, Pavan Group

Line composed by:

trademark boiler Ata, with production of 650 kg/h steam with heating surface to 20 m ³, 120 psig working pressure, test pressure 240 psig. GMP equipment fuel with electric control board.

Pneumatic flour with a capacity of 20...
Complete line for the production of spaghetti noodles
Complete line for the production of spaghetti noodles  [unavailable

Machine code: 503-004

Complete line of spaghetti consisting of:
-extruder.
-automatic Dryer with complete rods.
-mixers.
-Mill to grind the leftover spaghetti to return.
-2 automatic packaging machines 500 g and 200 g
-Baler.
-boiler.

Production capacity...

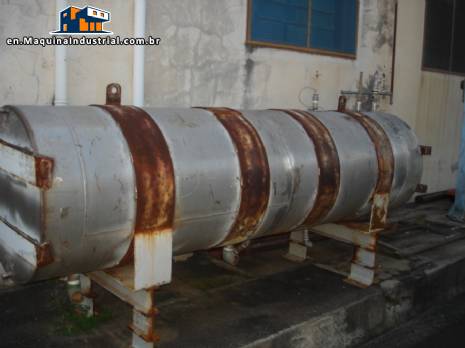

Steam tank for high pressure in stainless steel 400 liters
Steam tank for high pressure in stainless steel 400 liters  [unavailable

Machine code: 573-085

Steam tank.

Capacity: 400 liters.

With metal bands.
...
3 ATA brand Boilers
3 ATA brand Boilers  [unavailable

Machine code: 601-602

Brand: Ata

-Boiler-Mark 10:00 3 ATA-1300 KG/H
Year 2000-all reviewed with new wood furnace.

-boiler-ATA 2:00 pm Tag 3-2000 KG/H
Year 2002-all reviewed with new wood furnace.

-boiler-ATA 4:00 pm Tag 3-2002 KG/H
Year 2002-all reviewed with new wood ...
Boiler Ata
Boiler Ata  [unavailable

Machine code: 645-657

Boiler.

Brand: Ata.

Model: Flamotubular Horizontal....
Boiler boiler brand Morganti
Boiler boiler brand Morganti  [unavailable

Machine code: 503-524

Brand: Morganti

Boiler water heater boiler brand Morganti.

Model ET-60.

60,000 capacity Kcal / hour....
Line for filling of glass bottles and pet
Line for filling of glass bottles and pet  [unavailable

Machine code: 128-354

Brand: Alcoa, Ata, Holstein Kappert, Rotix

Line for filling bottles of 180 ml to 1000 ml, and the washing machine can wash up to liter of brandy
01 washing machine bottles Holstein Kappert-P/16000 bottles/hour
1 Filler Kappert 60/10 Holstein P/9600 bottles/hour (Corker)
Rotix Labeller p...
Boiler Ata
Boiler Ata  [unavailable

Machine code: 746-311

Brand: Ata

Boiler.

Brand: Ata.

Year: 1986.

Capacity: 3 ton / hour.

Fuel: Firewood.

Working pressure: 150 psig.
...
4000 Kg boiler Conservit brand
4000 Kg boiler Conservit brand  [unavailable

Machine code: 321-678

Brand: Conservit

4000 Kg 10 Kg steam boiler pressure, fire in the belly conservit brand. 2 years of use. New pipe, pump and new Panel, new mirror....
Trademark Boiler ATA
Trademark Boiler ATA  [unavailable

Machine code: 045-108

Brand: Ata

Boiler used ATA brand.

TAG: ATA capacity: 1500 kg
fuel: wood



...
ATA 300 / 500 flow boiler
ATA 300 / 500 flow boiler  [unavailable

Machine code: 002-448

Brand: Ata

ATA 300/500 flow boiler.
With gas burner....




Visitation: Schedule date for visitation and check equipment availability. Merely illustrative images.


Closed your business?
Customers

https://en.maquinaindustrial.com.br/used-machinery-for-sale/?c=Industrial+steam+boilers_ITB2



Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.


Máquina Industrial - Street Antonio Blanco, 1451 - Jardim Sao Joao Batista
ZIP Code: 13567-060 - Sao Carlos / SP - Brazil

Phones:

Sales: +55 (16) 3361-6681 / 3361-6682 / 3419-4644

Administrative: +55 (16) 3419-4648
