Used machines for sale
Feeding system
>> Metal
|
|
|
|
|
| Feeding system |
|

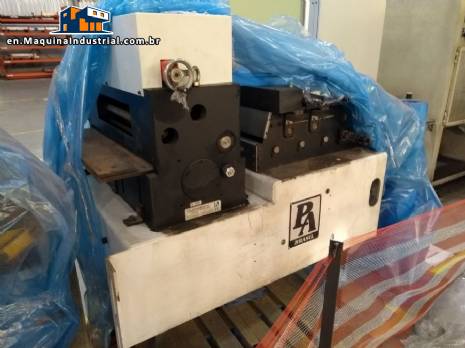

Feeding system.
Brand: P / A (USA headquarters).
Motorized unwinder model 3000 SRA-3000PABR.
width of 600 mm.
Electronic feeder coupled with straightener, model SRFM-24-5SC.
Year: 2014.
Electronic feeder capabilities:
Thickness 3 mm x width 600 mm.
5 mm x 360 mm thickness.
6.35 mm x 283.5 mm thickness.
Maximum feed: 6,000 mm.
Minimum increment in feed: 0.02 mm.
Maximum width: 600 mm.
Maximum permissible thickness: 6.35 mm.
Maximum thickness in total width (610mm): 5 mm.
Maximum width in the thickness of 6.35 mm: 350 mm.
Maximum speed: 60 m / min.
Maximum driving speed: 250 GPM.
Diameter of the lower feed roller: 127 mm.
Diameter of the upper feed roller: 127 mm.
Continuous power: 3208 N.
Peak power: 6154 N.
Peak servo current: 28 Amps.
Servo output power: 3KW.
Number of straightening rollers: 5.
Straightening rollers diameter: 76.2 mm.
Motorized unwinder 3000 SRA-3000 PABR.
Information:
Width: 600 mm.
Maximum thickness: 5 mm.
Weight: 3000 kg.
Speed: 0 to 35 m / minute.
Feeding accuracy: 0.02 mm to 0.05 mm.
Material: 1020 eA 36 steel. |
|
|
|
|
|
|
|
