 Shell and tube exchanger
Main brands:
Carrier, Mebrafe, MECALOR
|
| Shell and tube exchanger |
Shell and tube condenser heat exchangers are devices used in industry to transfer heat between two fluids, and are commonly used in condensation processes. They are designed to efficiently exchange thermal energy between a fluid that passes through the tubes (the internal fluid) and another fluid that circulates in the shell around the tubes (the external fluid). Below I will provide information on the usefulness and common types of shell and tube condenser heat exchangers:
What is it for:
Condensation: Shell and tube condenser heat exchangers are often used to condense vapors, transforming them back to a liquid state. This is common in industrial processes where heat recovery is essential.
Heating: In addition to condensation, these exchangers can also be used to heat a fluid using the heat released during condensation.
Cooling: In some applications, shell and tube heat exchangers are employed to cool fluids by removing heat from the internal fluid and transferring it to the external fluid.
Common Types of Shell and Tube Condenser Heat Exchangers:
Single Pass Shell and Tube Heat Exchanger: The internal fluid runs through the tubes once, going from one end of the shell to the other.
Double Pass Shell and Tube Heat Exchanger: The internal fluid passes through the tubes twice before leaving the exchanger.
Multipass Shell and Tube Heat Exchanger: There may be arrangements in which the internal fluid passes through the tubes more than twice to increase the efficiency of heat transfer.
Finned Tube Shell and Tube Heat Exchanger: The tubes have fins to increase the heat transfer area and thus improve the efficiency of the exchanger.
Vaporizer Type Shell and Tube Heat Exchanger (Reboiler): Designed specifically to vaporize a liquid, common in distillation processes.
Condenser Type Shell and Tube Heat Exchanger: Designed for condensing vapors, transforming them back to the liquid state.
Shell and Tube Heat Exchanger with U Tubes: It has U-shaped tubes, facilitating thermal expansion and cleaning.
Crossflow Shell and Tube Heat Exchanger: The internal and external fluid flow perpendicular to each other, allowing efficient heat transfer.
The choice of the type of shell and tube condenser heat exchanger will depend on the specific needs of the industrial process, the properties of the fluids involved and the operating conditions. These exchangers are essential in a variety of industries, including petrochemical, chemical, food and others, where precise temperature control is crucial. |
|
|
|
 |
Shell and tube condenser/hull heat exchanger.
Diameter: 350 mm.
Total length: 3000 mm.
Length without covers: 2500 mm.
56 inner tubes as per photo.
Tube inner diameter: 10 mm.
It had a juice system.... |
|
|
 |
Brand: Mebrafe
Evaporator condenser.
Manufacturer/brand: Mebrafe.
Model: CETF 1000.
Capacity: 990,000 rs/h.
Year of manufacture: 2000.
Machine operating time: 17 years. Stoppage time: 7 years.
The evaporative condenser is used to remove excess hea... |
|
|
 |
Brand: MECALOR
Air condenser chiller.
Manufacturer: Mecalor.
Model: RLA-90-CA-380/C
Rated capacity: 90,000 kcal/h.
Condensation: Ambient air.
Year: 2012.
Voltage: 380V.... |
|
|
 |
Brand: Carrier
Condenser and evaporator chillers.
Manufacturer: Carrier.
Model: 30GX.
Capacity: 160 TR.
Voltage: 380V.
Year: 2009.... |
|
|
 |

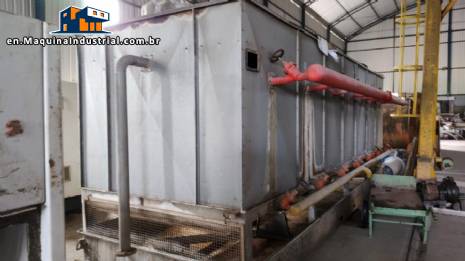

Evaporative condenser for ammonia.
It has 8 tons, 7 fans on top, we believe its production is between 1 and 1.2 million kilocalories, being an estimate.... |
|
|
 |
Shell and tube condenser.
Model: TST.
With 176 internal tubes.
Kgf / cm² = 12.1 / 6.00.
Measures:
Length: 2 m.
Diameter: 9 ".
Internal tube measurements: 3/8 ".
Length: 1,900 mm.... |
|
|
|
|
