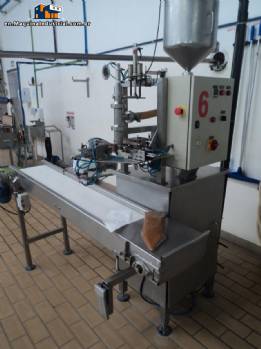

| Filling/sacheteira in stainless steel for Burgmann packaging of liquid and Pasty products |
|
Filling capacity of liquid and Pasty products.
The clamps that hold the pouch has 130 mm adjustment to 170 mm.
the volume to be dosed at a time can be from 100 grams up to 2.5 kg.
Average production of 400 units per hour for volumes of 1.5 kg.
Brand: Burgmann.
Control voltage 380 V
requires compressed air.
Equipment in stainless steel 304 total
operation of the machine it is necessary to connect a network with a pump for product supply in the upper container for your time has a level control that regulates the work of the bomb.
You take the package with both hands, lines up between the jaws and clamping a drive early one-touch process with the knee.
This for your time through suckers opens the package, the filling nozzle descends, filling begins on the packaging, after the beak closes by a piston, the beak returns up, closes the jaws of weld, opens the claw jaw loose the packing for your time fall on a conveyor that transfers the desired sequence.
This occurs through filling a volume adjustment piston and pulsionado by a pneumatic piston (volumetric filling).
The sequence of machine work occurs through a PLC. |
Brand:
Burgmann
|
|
|
Main applications:
Food industry
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
