| Paint booth Erzinger |
|

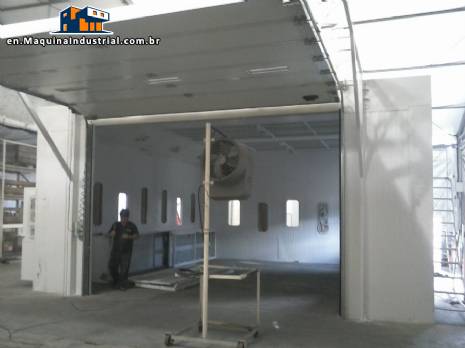

Stove painting booth.
- Brand: Erzinger.
- Model: CPVS 800.
- Operating time: 1.5 years.
- Stop time (stored film correction): 2 years.
- Date of manufacture: 2013.
- Process: Painting of parts with drying cycle.
- Internal volume dimensions: 140 m3.
- Floor dimensions: 40 m3.
- Construction in modular insulation panels in PU and metal face in galvanized steel.
- Pre-painted in white with a smooth finish.
- Internal volume of 140 m3.
- Floor area of 40 m3.
- Indirect heating by heat exchanger with gas burner ELCO 2.210 D, forced air circulation by
Fan with power of 25 CV VI poles 220/380 V.
- Initial air filtration by class G3 filter bag.
- Exhaust by fan with power of 25 CV VI poles 220/380 V.
- Exhaust side box with EF111 pleated paper filters.
- Matte Filter Paint Stop class G4.
- Ceiling with V600 polyester filter cloth.
- Fixtures with 250W metal steam lamp.
- System for monitoring the saturation of the filters by differential manometer.
- Sensors for identification of operating conditions (open / closed).
- Automatic sectional door for entry / exit of parts.
- Electrical power supply of 380 V neutral + ground equipment (independent).
- Working temperature - greenhouse: 80 oC.
- Work temperature -
- Cabin: ambient temperature. |
Brand:
Erzinger
|
|
|
|
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
Others suggested equipment for you:
|
|
 |
Blasting booth.
Brand: Polo Ar.
Model: PP 140 LAV.... |
|
|
 |

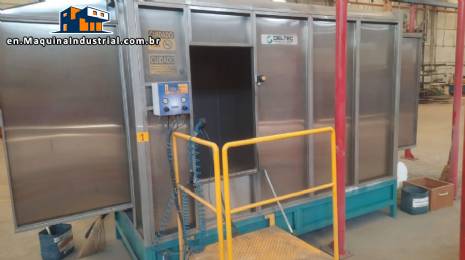

Paint booth with full powder coating.
Cabin with two posts as opposed to manual painting with silhouettes of up to 850 x 1,600 mm.
nominated for normal powder flow and line speeds medians in lines with manual guns, capable of air carrier.
... |
|
|
 |
Brand: DeVilbiss
Devilbiss brand paint equipment.... |
|
|
 |

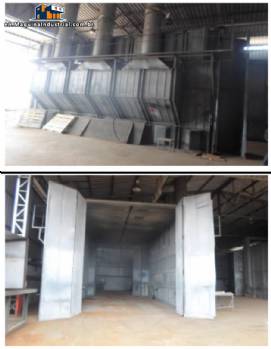

Spray booth-liquid Ink.
Filters are made of galvanized sheet, provided in modules of 900 mm high by 970 mm long.
Filter cleaning is facilitated, because it is made by a non-ink and its application can be made for pistol before use and after each ... |
|
|
 |
Brand: Eisenmamm
Brand: Eisenmamm.... |
|
|
 |
Paint booth filter dry-liquid Ink.
Width: 2,000 mm.
height: 2,250 mm.
depth: 1.50 mm.
filters: 4.
Motor: 3 HP/3 f.
flow: 250 m ³/min.... |
|
|
 |
Brand: Erzinger
Paint booth.
Brand: Erzinger.... |
|
|
 |
Spruzatrice Chemical Spruzatrice and Painting Line Cefla a robot with pistols for high quality paint, especially in high gloss lacquer to both can be used uv product or pu, since this machine is already equipped with ecogel oven for drying of these t... |
|
|
 |
Dry painting booth with chimney... |
|
|
 |
Spray booth dust projection with automatic scraper MVH-Binks Sames
size:
length: 2320 mm.
height: 3500 mm.
width: 2480 mm.
the base Image: 1900 mm x 5200 mm.
from the base: 3100 mm x 4600 mm.
Manufacturer: steel Itself.
Function: carr... |
|
|
 |
Brand: Aggafer
Spray booth AGGAFER
spray booth with exhaust fan and dry filter with 4,000 mm chimney built with profiles 1020 steel plates, being a front-opening 1800x800mm.
height: 3,550 mm
width: 2000 mm
length: 2000 mm
height with feet: 4,000 mm
Manu... |
|
|
 |
Spray booth filter dry-liquid Ink.
With air carrier.
Width: 4,000 mm.
height: 4,250 mm.
depth: 1.50 mm.
dry filter: 4.
engine: 6 HP/3 f.
flow: 600 m ³/min.... |
|
|
 |
Complete line for painting in perfume bottle containing whole process.
flamagem, brushing cabin 2 cabin paint application with water curtain and GO for evaporation of the solvents, accompanies a greenhouse gas continues.
Control Panel:
co... |
|
|
 |
Blasting machine.
Width: 900 mm.
height: 700 mm.
depth: 850 mm.
Filter Area: 3.0 m ².... |
|
|
 |
Brand: DMC
Spray booth DMC.
Model: Twister.
Fan: Limit LOAD 500.
Engine: 2 x 12.5 HP.
: 104 x 40 w Lamps
estimated Consumption; 38.9 KVA.
Current estimated 59.2.
: three-phase 380 v Voltage.
Height 1500 mm (gauge pressure).
size:
external ... |
|
|
|
|
