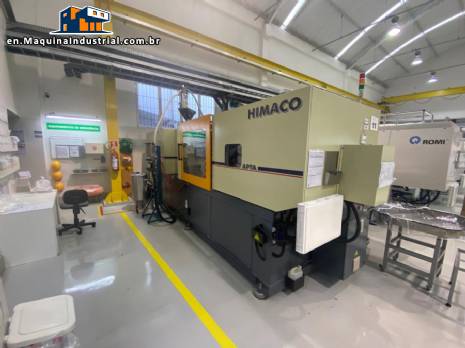

Plastic injection molding machine for P.P.

Brand: Himaco.

Model: APTA ECO 250 WITH SERVO MOTOR.

Average production: 130,000 units per day.

Three-phase voltage 220 v.

Commanded by PLC.

Techmation.

Closing force from 250 tons to 280 tons.

Closure opening stroke 550 mm.

Passage between columns 580 mm x 580 mm.

Mold thickness (max/min) 630/230 mm.

Maximum distance between plates 1,180 mm.

Hydraulic extractor castle 5 pins.

Thread diameter 62 mm.

Injection pressure on the material 1,723kgf/cm².

Theoretical injection volume 966cm³.

Theoretical injectable weight in PS 879g.

Hydraulic System with Servo Motor for energy saving.

Automatic lubrication on the closing busbars.

Automatic mold height adjustment.

Electronic, electrical and mechanical security system in accordance with current regulations of NR12.

Hydraulic system with HP and Rexroth components.

Pneumatic extractor 2 points.

Double hydraulic male puller.

Male puller programming screen with parameters in the programming of times, position, pressure and flow according to the image sent in the email from Himaco on 02/02/2017.

Vibra-stop and magnetic grid set.

16-way water dispenser (8 inlets and 8 outlets).

2 three-phase 220 sockets located on the front left side of the machine below the opening and closing unit approximately 60 cm from the floor and 20 cm from the end of the machine base.

2 two-phase 220 sockets located on the rear left side of the machine below the injection unit approximately 60 cm from the floor and 20 cm from the end of the machine base.

2 STECK 32A sockets located on the front of the right side of the machine below the opening and closing unit approximately 50 cm from the floor and 20 cm from the end of the machine base.

1 STECK 32A socket located on the front right side of the injected part outlet chute 40 cm from the floor and 20 cm from the end of the machine chute.

1 Harting HAN 16A socket for male safety connection located on top of the mobile plate.
