 Screw compressor
Main brands:
Atlas Copco, BOGE, Ingersoll Rand, Kaeser, Martin Bianco, Schulz
|
| Screw compressor |
A screw air compressor, also known as a screw compressor, is a type of positive displacement air compressor used to compress air. The main purpose of a screw air compressor is to generate compressed air, which can be used in a variety of industrial and commercial applications. See how it works and what it is for:
How a screw air compressor works:
Principle of Compression: The operation of a screw air compressor is based on the principle of screw compression. It consists of two helical screws, often called a male screw and a female screw, that rotate in opposite directions within a housing.
Air Intake: Ambient air is sucked into the space between the two screws when they rotate. As the screws move, the space between them decreases, compressing the air as it moves forward.
Compression: Air is compressed as it is forced into the housing by the moving screws. Compression occurs continuously as the screws rotate.
Compressed Air Outlet: Compressed air is released through the compressor outlet, where it can be directed to compressed air systems, storage tanks or directly to industrial applications.
What is a screw air compressor for:
Pneumatic Tools: A common use is to power pneumatic tools such as impact guns, pneumatic screwdrivers, sanders, air hammers, and other industrial tools. These tools are popular in machine shops and construction sites.
Compressed Air Systems: Screw air compressors supply compressed air to compressed air systems in factories, industrial plants and commercial facilities. These systems can power machines, manufacturing processes, pneumatic control systems, and more.
Painting Applications: They are used to supply compressed air to spray guns for painting applications in automotive, furniture, construction and other industries.
Food and Beverage Industry: Screw air compressors are used in food and beverage production for various applications, including pneumatic conveying, packaging and food preservation.
Industrial Process Control: They are used in process control systems to supply compressed air to valves, actuators and other control devices.
Packaging Machines: Screw air compressors can power packaging machines, which are widely used in packaging processes in various industries.
Industrial Refrigeration: In industrial refrigeration systems, these compressors provide compressed air to operate valves and control systems.
Cleaning and Blasting: In cleaning and blasting applications, compressed air is used to remove dirt, debris and coatings from surfaces.
Electrical Power: Some screw air compressors are used in the production of electricity, powering gas turbines in power plants.
Screw air compressors are valued for their efficiency, durability, and ability to deliver high-quality compressed air continuously. They are used in a wide range of industrial and commercial applications to power tools and processes that rely on compressed air.
Check out options for screw air compressors for sale: |
|
|
|
 |

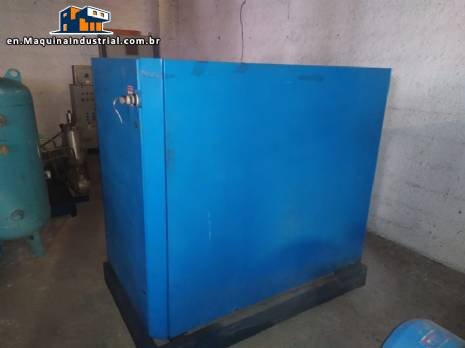

Brand: Kaeser
Compressed air screw blower.
Manufacturer: Kaeser.
Approximate Dimensions:
Length / Depth: 1420 mm.
Height: 1500 mm.
Front width: 1300 mm.
Engine: WEG 25 HP.... |
|
|
 |
Brand: KHS, Mojonnier, Sabroe, Schulz, Ziemann Liess
Complete line plant for the production of beer and soft drinks.
Line composed of:
Bottle washer.
Manufacturer: Ziemann-Liess / KHS.
With 32 positions.
Year: 1994.
With tank system.
Linear rinser for bottles.
Nominal production... |
|
|
 |
Brand: Schulz
Components: Danfoss, WEG
Air compressor.
Brand: Schulz.
Model: SRP 3008 compact.
Literature: 200 L.
Engine: 7.5 hp.
Components:
Motor.
WEG mark.
Accessory Danfoss.... |
|
|
 |
Container compressor.
Screw type compressor.
Model: HLGD 37.
Flow rate: 6.4 m³ / min.
Exhaust pressure: 1.6 mpa, ambient temperature + 15 ° C.
Motor power: 37 kw.
Weight: 1050 kg.
Dimensions in mm: 1450 X 1000 X 1600.
Compress... |
|
|
 |
Brand: Atlas Copco
Compressor for compressed air.
Make: Atlas Copco.
Model: GA 110.
Year: 2001.
Maximum pressure: 7.4 bar.
Power: 150 hp.
Maximum flow: 21.8 m³ / min.... |
|
|
 |
Brand: Ingersoll Rand
Screw type air compressor.
Brand: Ingersoll Rand.
Year: 2011.
Working pressure - 13.27 Kgf / cm³.
Working temperature: 120 º.
Reservoir capacity: 350 l.... |
|
|
 |

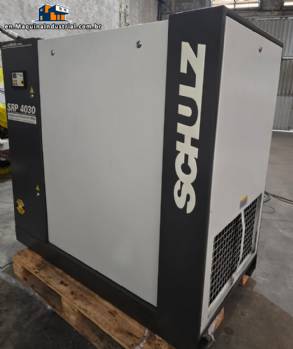

Brand: Schulz
Air compressor.
Brand: Schulz.
Model: SRP 4050 FAC.
Nominal pressure: 7.5 barg / 109 psig.
Maximum pressure: 15 barg.
Effective flow rate: 6354 m² / h.
With 50 hp.
37 KW.
Frequency: 60 hz.... |
|
|
 |
Brand: Fortes automação, Inbramaq
Production line for extruded corn snacks.
Approximate capacity: 230 kg / h.*
* with the two extruders operating with several matrices of different snack formats.
The line consists of:
- 01 single screw extruder.
Manufacturer: Inbramaq.... |
|
|
 |
Brand: BOGE, Martin Bianco
Screw compressors.
Manufacturer: Martin Bianco (BOGE).
1 unit model SD 50-2.
1 unit model SRHV 470-10.... |
|
|
 |
Brand: Atlas Copco
Screw air compressor.
Brand: Atlas Copco.
Engine: 30 C.V.
RPM: 3,550 R.P.M.
Year: 2012.
Quantity: Two units available.
TYPE: GA22+125 FF 440V/60HZ + DDX.
FINAL PRESSURE 8.85 BAR.
FREE DISCHARGE 226.1 M³/H.... |
|
|
 |
Brand: Atlas Copco
Air compressor.
Brand: Atlas Copco.
Model: GA 75.
Year: 2009.
Hours worked: 15,785.89 h
Number of maintenance performed: 2
With electronic module.
Hourmeter.
Air cooled.
Oil Injection.
Gross weight: 1 534 kg.
Dimensio... |
|
|
 |
Brand: Atlas Copco
Screw air compressor.
Brand: Atlas Copco.
Dimensions: 2.80 m long x 1.60 m wide x 2.00 m high (in meters).
Pressure 8.9.
Year: 2004.... |
|
|
 |
Brand: Atlas Copco
Atlas Copco Air Compressor.
Type Screw.
Model: GA75-100P.
Rotation: 3560 RPM.
Year 07/93.
440 V, 60HZ-BAR 74.... |
|
|
 |
Brand: Atlas Copco
Compressor Atlas Copco GA 45FF,
, Screw in use.
... |
|
|
|
|
