Used machines for sale

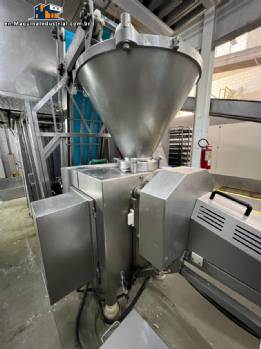

Continuous vacuum divider for dough division VEMAG
>> Pasta dividers
>> Pastas
|
|
|
|
|
| Continuous vacuum divider for dough division VEMAG |
|
Continuous vacuum divider for dividing doughs and mixtures.
Manufacturer: VEMAG do Brasil.
Approximate maximum capacity: up to 320 servings / min.*
*Continuously adjustable depending on portion size.
Approximate maximum capacity: 6750 kg/h.
Portion sizes: 100 grams to 1400 grams.
With 1 outlet nozzle to choose from 40 to 90 mm in 10 mm intervals.
With snail shirt.
With carrier and protective cover.
Plastic mat 240 mm wide.
Conveyor 1100 mm long.
Conveyor height is adjustable between 760 mm and 960 mm.
Frequency converter for speed adjustment up to a maximum of 60 m/min.
250 liter silo with removable feed conveyor and protection
security.
Silo with 130 mm diameter product inlet.
Internal injection pump.
Vacuum control and ventilation transport system.
Integrated CAN-BUS control system.
Graphic display with all settings, functions and error information.
Can store up to 99 filling programs.
Vemag Duo-Drive system with separate drive for auger.
Snail drive with 13.1 kw AC-Servo.
Feed conveyor with 4.0 kw AC motor with frequency converter.
Plugs for external connections.
Machine built in stainless steel with a total nominal power of 22 kW.
Class F5 bakery filter = up to 95% particle separation
larger than 3 microns.
Rotary cutting system with servo motor and variable cutting speed in the exit nozzle area.
Suction fan and external filter.
Working voltage: 380V.
Frequency: 60 Hz. |
Brand:
VEMAG, VEMAG do Brasil
|
|
|
|
|
|
Main suggestions:
|
|
 |
Brand: Tecnotrip
Continuous stainless steel vacuum filler.
Manufacturer/brand: TecnoTrip (Spain).
Model: EC-3N.
Maximum filling capacity: up to 3000 kg/h.
With vacuum pump.
Equipment without receiving funnel and trainers.
Approximate dimensions:
... |
|
|
 |
Brand: RISCO SpA
Continuous vacuum sausage stuffer in stainless steel for cold storage.
Manufacturer | Brand: RISCO S.p.A.
Model: RS 105.*
*With hopper from the 205.
Year: 2013.
Hunk with approximate capacity of 200 kg.
Approximate capacity: 300 to 40... |
|
|
 |
Brand: Fritsch
Universal mill for R&D development laboratory stainless steel 316 L or small productions.
Manufacturer brand: Fritsch.
Model: pulverisette 19 L.
Year of manufacture: 2021.
Model specification series: 19.4060/00003.
R.P.M according to m... |
|
|
 |
Brand: Alfa Laval
Skid-mounted centrifugal separator for cleaning oils from hydraulic and other similar systems.
Manufacturer: Alfa Laval.
Maximum capacity: 10.6 m³/h, depending on the product.
Model: MAB 206.
The equipment was recently overhauled and skid... |
|
|
 |
Brand: G.Mazzoni, Mazbra Mazzoni
Complete structure of triplex bar soap extruder.
Composed of:
- Extruder for manufacturing bar soap.
Brand | manufacturer: G.Mazzoni.
Model: Triplex.
Approximate capacity: 3,000 kg/h of bar soap.
- Internal carbon steel liquid soap ... |
|
|
 |
Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg
3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ... |
|
|
 |
Refining unit.
It has a capacity of 250 barrels per day of light oil, lubricants, naphtha, alcohols and industrial solvent treatment.
Its construction materials are special to withstand the most diverse conditions of corrosion and impurities.
... |
|
|
 |
Brand: Agilent HP, CEM, Labconco, Mettler Toledo, Millipore, PerkinElmer, Phenomenex, Spectrum One, Toledo, Vankel
Laboratory analytical, pharmaceutical, clinical, chemical, and environmental.
Equipment in excellent condition.
Manufacturers of reference.
Description of analytical equipment and accessories.
- Microwave oven for calcination.
Brand: C... |
|
|
 |
Brand: Remac

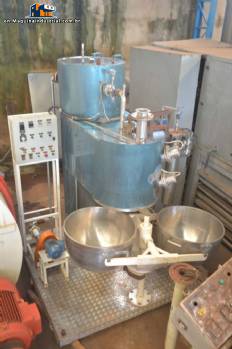

Vacuum cooker for candies.
Manufacturer: Remac.
Model: Master 1000.
Approximate capacity: 1000 kg / h.
For the production of hard and chewy candies with a continuous operation process, requiring pre-cooking of the syrup.
Characteristic... |
|
|
 |
Brand: Metal Cryo
Liquid nitrogen rapid cooling tunnel in stainless steel.
For cryogenics of foods such as pasta, pulses; salted; pulps; grains; seafood, fish, meat, among others.
Brand: Metal Cryo.
Model: MCTC10000.
Year: 2020.
Approximate average prod... |
|
|
 |
Brand: Alfa Laval
Stainless steel triblender.
Brand: Alfa Laval.
Model: Tri-Clover F4329MD-MBV-S.
Engine: 20 hp.
Application:
System for Mixing Dry / Liquid Ingredients in Sanitary Conditions.
The Mixer provides fast and uniform mixing in continuous or b... |
|
|
 |
Brand: Brawel
Vacuum 300 x 400 mm area still Line Blister
-pneumatic cylinder to start sealing plate
-P.I. temperature control D to the k12k *-* continuous sealing System for Pur mat
-Control by PLC with HMI software
-requires no operator for withdrawal of... |
|
|
 |

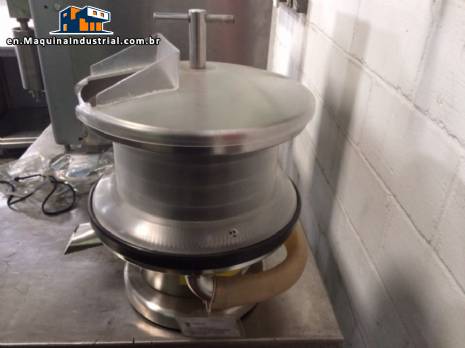

Desempoeirador vibrating pills, contains powerful and effective action.
