| Production line for buttery puff pastry cookies |
|
Line for manufacturing puff pastry cookies or butters.
Approximate capacity: 120 units/minute.
Line consisting of:
- Mixer and kneader for dough and fillings.
Approximate capacity: 75 kg.
Year: 12/2022.
Imported from China.

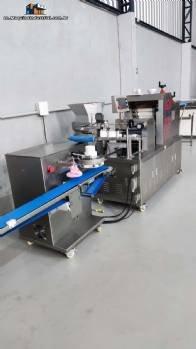

- Rolling cylinder for forming puff pastry with or without filling.
The equipment was used for puff pastry.
Model: HD-988A.
Approximate capacity: 20 to 120 units per minute.
Year: 12/2022.
Imported from China.
The dough sheet enters the equipment and passes through rollers to adjust the thickness of the dough. The filling is inserted and the dough is rolled into a rope shape. Thus, the dough is shaped into balls and then flattened as per the video.
The equipment was used for stuffed puff pastry cookies. It can also be used for butter cookies.
- Molding machine for flattening, thinning, kneading and kneading cookies and dough.
Model: YB - 3.
Equipment imported from China.
Approximate capacity: 120 units per minute.
The product passes through a conveyor belt and is flattened by a disc as shown in photo 3.
The function of this machine is to flatten the cookies or dough, making the product thinner, so that it can be cooked, baked or fried more quickly.
Imported from China.
- Aligning and organizing machine for cookies and biscuits on stainless steel trays.
Model: HD-600.
Approximate capacity: 200 units per minute.
Equipment imported from China.
Year: 2023.
To organize products on trays.
Model: HD-600.
Approximate capacity: 200 units per minute.
Equipment imported from China.
Year: 2023.
To organize products on trays.
- Turbo oven for bread, cookies, and baking.
Manufacturer | brand: Supremax.
Model: IGS 10.
Year: 2007.
For 20 trays.
- Automatic electric fryer
Capacity: 6.5 kW.
Imported from China.
Year: 2022.
Equipment not in use.
- Horizontal flow pack packaging machine.
Imported from China.
Equipment can be sold separately. |
