| Automatic stand up pouch filler for liquid or pasty products Gualapack |
|

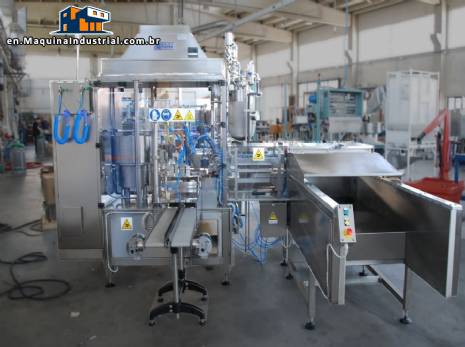

Automatic stand up pouch filler for liquid or pasty products.
Manufacturer brand: Gualapack.
Model: CHP-2H.
Year: 2020.
Production: 80 units/minute with 110 ml of water, may vary depending on product and operating conditions.
Pre-formed pounch packaging machine.
The CHP-2H Filler is built to satisfy medium fill rate volumes, based on a rotating step-by-step table in which pouches are filled and corked, it is designed to pack liquid or pasty products into various sizes of pre-filled pouches. manufactured.
Energy consumption: 6.3 KW/h (main motor, 2 metering pumps, bag charger, 2 screwdrivers, 1 vibrating unit, 1 output conveyor motor + 3KW/h (thermostatic tank)
Electrical supply: 380 V Three-phase/ 50 Hz.
With separate neutral and earth conductors.
Pneumatic supply: Compressed air of 6 to 7 bar (atm.)
Gas consumption (nitrogen): 6 Nl/min. (according to bag size)
Compressed air consumption: 350NI/min
Steam consumption (cleaning straw): 30-40 Kg./h
Reservoir capacity: 18 l.
Filling temperature: From -05 to 95 °C.
Product supply: through tank with automatic level control and volumetric dosing pump
Bag charging: automatic supply - approximately 9' of autonomy -
Lid supply: PE/PP lid with tamper evident (std./baby lid/brick lid)
Bag exit: via conveyor belt
Dosage regulation: By display (electronic pump).
Cycle and function controls: PLC system, optical sensors and proximity switches
Error diagnosis: via diagnostic unit with a touch screen
Overall dimensions: Width 2800 mm; Length 3290 mm; Height 2600 mm
Weight: 2100kg. |
