| Filling machine for sachet with two dosers |
|

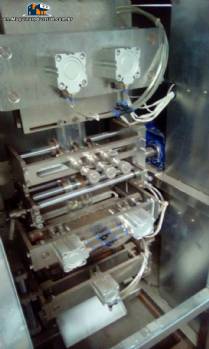

Chinese sachet filling machine.
Production: 3500 to 4000 units per hour, packages up to 250 mm in length.
Model: GH400Y.
With two filling ways, possibility to upgrade to four filling ways.
Equipped with photocell for reading printed marks and hot stamping printer for date and batch printing.
PLC controlled with interactive Touch Screem, stable work and low noise, ensuring smooth and continuous operation.
The equipment can be applied in the packaging of various products, including yogurt ice cream.
It is equipped with volumetric metering pump that ensures accuracy and productivity.
The constructive form is designed to ensure throughout the process the standards required by the company and GMP standards.
It comes equipped with a photocell system for centralizing the package and also with a Hot Stamping Dater for printing the required dates or controls.
Specifications:
Control Panel: HDMI & PLC
Packing Speed: 40-50 u / m.
Package Size: 230 mm x 45 mm.
Maximum width of packaging film: 400 mm.
Film thickness: 0.04 - 0.09 mm.
Sealing: 4 front weld pouch.
Metering pump: 0-60 ml.
Dosing system: Volumetric pump.
Installed power: 3.6K W / 220 V 60 Hz.
Dimensions (WxDxH): 1.680 x 900 x 900 mm.
Shipping box measurements: 1,980 x 1,200 x 1,200 mm.
Weight: 600kg
Structure: SS304, parts in contact with the product in SS316. |
|
|
|
|
|
|
|
