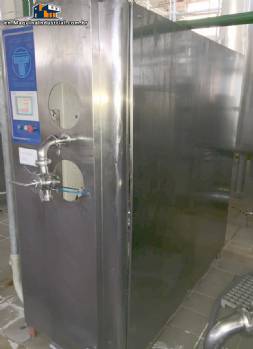

| Ice cream machine continues Technogel Explorer 1500 |
|
Technical data:
Size:
Width: 680 mm.
Depth: 2350 mm.
Height: 2100 mm.
Weight: 1450 kg.
Ice cream 100% production increase in volume liter/hour: 600/1500 litres.
Voltage/frequency: 230-400-3-50 Hz/230-400-3-60 Hz.
Electric Power installed: Kw 39.
: Freon refrigerant R404.
Compressor: 2 x 15 HP.
Condensation: water.
Necessary infrastructure:
-compressed air 6 BAR NL/min: 10.
-the Tower Water 29° C Kcal/hour: 66,000.
Used to keep production of ice cream with volume increase of 30% to 100% with hardness and temperature suitable for extruded ice cream (up to -8° C) and for filling with ice cream semi-denso to -2° C molds submerged.
The machine is equipped with HIM Touch-Screen type for a direct and immediate control of the functions of the equipment:
-Setting and control of the temperature of the ice cream.
-Setting and control of the hourly production.
-Setting and control of the Overrun.
-Setting and control of viscosity.
-possibility to record revenues from products.
-auto-system with photographic display on the screen of HIM of the anomaly, description of the cause and possible remedy to the problem. |
Brand:
Technogel
|
|
|
Main applications:
Food industry
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
