Nemo Netzsch helical positive pumps

Need maintenance technician, revision and warranty? Click here.

Machine code:

504-335
UNAVAILABLE

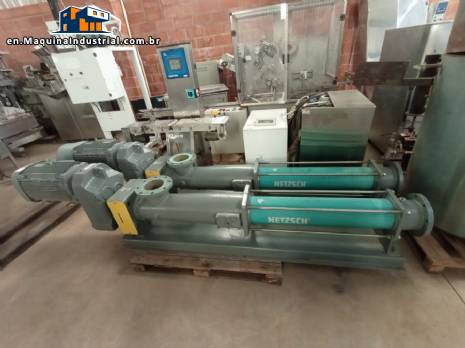

Positive helical pumps.

Transport / transfer pumps.

Manufacturer: Nemo Netzsch.

Type: NM090BY 01 L 07 J.

Year: 2018.

Quantity: 2 units, one with forced ventilation, the other without.

Possible specifications according to type NM090BY 01 L 07 J:

Casing: Gray cast iron.

Rotating parts: AISI 420 stainless steel.

Impeller: AISI 420 stainless steel, UM40, extra polished.

Joints: Type J, with protective sleeve (J), NBR.

Direction of rotation: Counterclockwise.

Installation: Horizontal.

Suction port: Flange, 6", ASME B16.1 #125, FF, 1.a.1 (central vert.).

Pressure port: Flange, 6", ASME B16.1 #125, FF, 4.a.0 (central).

Product to be pumped: Water.

Pumping temperature: 30 °C.

Density: 1000 kg / m3.

Design flow rate: 70 m3 / h.

Nominal flow rate: 70 m3 / h.

Suction: - 2.5 mca.

Gauge pressure: 4 bar.

Rotation: 241 rpm.

Power input: 21 HP.

Power supply voltage: 220 V.

Brand:
Netzsch
