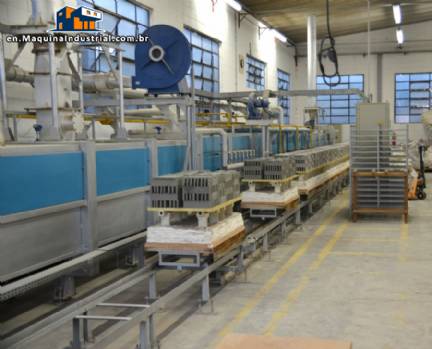

| Tunnel kiln with trolleys for firing ceramic tiles |
|
Tunnel kiln with light wagons for firing ceramic linings or calcining materials.
Year: 2013. Operating time: 12 years.
For continuous firing of lining bricks.
Approximate capacity: 18,600 pieces per day.
Pieces measuring 248 mm x 62 mm x 14 mm.
Kiln characteristics:
Reference cycle: 8 hours.
Kiln length: 21.0 m.
Useful width of the wagon: 600 mm.
Useful height of the wagon: 325 mm.
Useful length of the wagon: 1100 mm.
Number of wagons in the kiln: 19.
Total number of wagons: 36.
Maximum temperature in use: 1150 ºC.
Approximate monthly production: 230,924 tons.
Net specific consumption: 650 +/- 10% Kcal/kg (for a yield of 45%).
Regulation groups: 3
Installed power: 320,000 kcal/h.
Power supply voltage: 220 V.
Standby time: 1 hour. |
|
|
|
|
|
|
|
