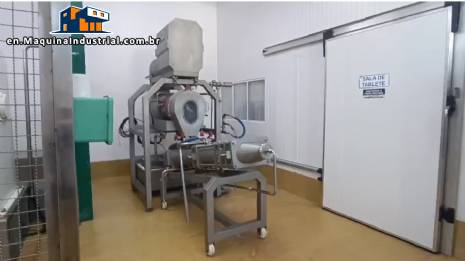

| Continuous butter churn in stainless steel FG INDMAQ |
|
Continuous butter churn in stainless steel.
Manufacturer | Brand: FG INDMAQ.
Technical Data:
Made entirely of AISI 304 stainless steel.
4 mm thick sheet metal.
Equipment dimensions:
Total length: 4,065 mm.
Width: 1,502 mm.
Height from the ground: 2,859 mm.
Equipment divided into parts or stages:
- 1st stage:
Cream receiving drum, with a 10 hp high-speed motor.
In the upper part of the equipment, the cream enters, conveyed by a positive displacement pump.
Subsequently, the cream is moved by the churning claw system and descends by gravity.
- 2nd stage:
Whey removal sector where the cream, already in butter form, is drained. 3rd Sector: Compaction and molding. Composed of two sets of helical screws that move the butter through compression sectors.
All equipment modules are double-jacketed, made of 3 mm thick sheet metal.
Chilled water circulates between these jackets.
With a sieve system for whey drainage.
CIP inlet network.
Structure in 100 x 100 x 3 mm square tubing.
Safety protection in 1.1/2" tubing.
Split bearings with self-compensating bearings.
Indirect coupling with a turning capacity of 3600 NM.
Acrylic window for inspection of the churning process.
Pressure relief valve (Indmaq butterfly type model).
Internal wave separator, 80 mm tubing, 3 mm wall thickness.
SMS inlet and outlet connections.
3" inlet and outlet connections.
CIP connections. 2.5" Removable spray nozzle.
1.5" valve for equipment depressurization.
3" valve: At the cream outlet.
Top sight glass on the upper part of the equipment.
Inspection door on the side of the equipment. 600 mm diameter. With a force arm, hinges, and quick-release latch.
Jeremias geared motors. Double-shaft reducers at the output.
Internal trimming shaft in the equipment. 3" diameter.
Stainless steel electrical panel with Weg electrical control. CFW frequency inverter.
Sanitary finish with glass microspheres.
- Electrical control panel:
Stainless steel control panel.
All electrical components (containers, circuit breakers, starter switches, etc.)
Brands: Siemens / Weg.
START/STOP button. Button for frequency inverter control.
Power: 380 / 220.
Control: 24 hp.
Electromagnetic sensor system. |
Brand:
FG INDMAQ
|
Components:
Siemens, WEG
|
|
|
|
