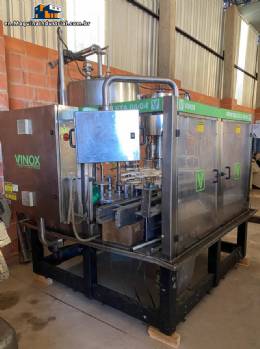

| Gravimetric rotary filling machine in stainless steel with cabin |
|
Rotary gravimetric filling machine in stainless steel, enclosed.
Manufacturer: Vinox / Zegla.
Estimated production:
For the 5 L format, 2,000 to 2,500 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
For the 1 L format, estimated production of 3,600 to 4,000 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
Filling machine with capping unit for 1-liter to 5-liter bottles, gallons, and carboys, depending on the height and width of the bottle.
Equipment with automation retrofit and program improvements.
PLC and IMH, manufacturer: Siemens.
Program logic:
The equipment has a color touchscreen for easy operation, where it is possible to parameterize and save recipes.
The following is the logic of the equipment's sensors, allowing for parameterization and delay adjustment:
- Activation of the bottle feeder (sensor on the incoming conveyor)
- Activation of the product pump to maintain level and open the pneumatic actuator (sensor on the float).
- Activation of the pneumatic piston at the conveyor inlet, minimum bottle load on the conveyors.
- Bottle presence sensor at the filling area (Shift Register).
- Bottle presence sensor during capping for calculating the number of bottles between filling and capping position (Shift Register).
- Sensor in the mechanical synchronization (Shift Register)
- Real-time configuration and reading of shift register data on the HMI.
- Sensor for activating the cap sorting pan and vertical feeder conveyor (giraffe).
- Sensor at the conveyor exit for maximum bottle load.
- Sensor for door opening and machine shutdown.
- Password-protected access level.
New documentation prepared by a specialized company:
- Complete electrical diagram.
- Equipment operation manual.
Gravimetric filling system with 8 nozzles.
With a giraffe conveyor to raise the caps, with automatic capping and screwing by 4 heads.
Equipment constructed of stainless steel for contact parts, with polycarbonate enclosure. |
Brand:
Vinox, Zegla
|
|
|
|
|
|
