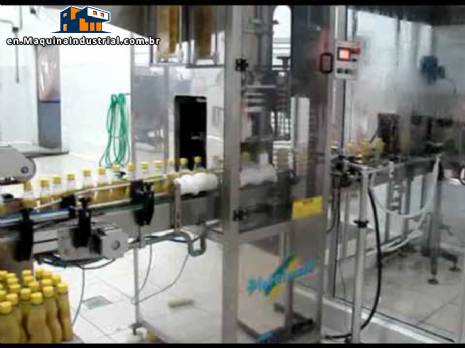

| Labeling machine Rotterm |
|
Heat-shrinkable label applicator.
Brand Name: Rotterm.
Model: M-1.
300 ml bottle format.
Application of up to 44 per minute.
Application speed: 2000 to 2800 bottles per hroa.
Diameter: As 300 ml bottle
height: 300 ml. bottle
coil Diameter: maximum 600 mm.
length: 700 mm.
width: 800 mm.
height: 2300 mm.
weight: 600 kg.
Power: 220 V-three phase-950 W-3.2.
: Motorized unwinding System (simple).
Cutting system: rotating.
Head type: Solenoid.
Variation: Approximately 1 mm.
system of accumulation in thread: does not follow.
Inspection system of end of coil: comes with.
Bottle separator system: Star (single).
Door open detection system: is not included.
Alarm indication system: Accompanies (visual and audible).
Tractor system: With stepper motor.
The lift system: Manual.
Noise level: below 78 DB(a).
Construction: Stainless Steel.
Panel View (HMI): Touch Screen Panasonic.
Controller (Plc): CLP Panasonic.
VFD: Danfoss.
Sensor: Tecnotron and Sick.
Engine: Voges and Bonfiglioli.
Thermo-shrinking system TV/R-1100/steam Tunnel in stainless steel.
-shrinkage speed: up to 3000 PCs/hour.
-steam connection: is needed for this system or system generated steam.
-controller: With control system PID (proportional, integral and derivative).
-equipment Power: 220 V/380 V-3-phase-9.5 Kw (maximum power).
-construction: stainless steel.
-structure length: 1100 mm.
-width of structure: 355 mm.
-height: 500 mm.
-weight: 150 kg.
-Control System of air flow: Accompanies (engine control pro VFD).
-pre-shrinking: System is not included.
-VFD: Danfoss.
-engine: Bonfiglioli/STM.
Steam generator GV-system 27.
-power control: 3 switching power néveis.
-equipment Power:
Step 1:220 V-three phase-7 kw.
Step 2:220 V-three phase-14 kw.
Step 3:220 V-three phase-21 kw.
-water control: for non-return valve.
-water level control: With two levels.
-low level detection system of water: Cut the tension and resistance make the indication in the Panel.
Construction: stainless steel.
TSP3000 stainless steel conveyor.
-working speed: adjustable.
-carrier length: 3000 mm
-conveyor width: 150 mm.
-carrier height: 130 mm.
-speed control: in the tunnel.
-chains: stainless steel. |
Brand:
Rotterm
|
Components:
Bonfiglioli, Danfoss, Sick, STM, Tecnotron, Voges
|
Main applications:
Food industry
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
