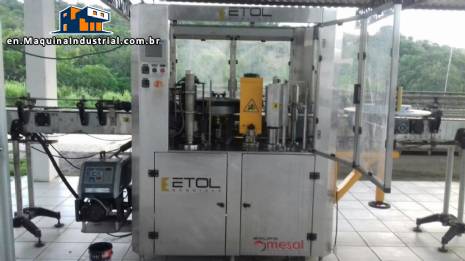

Automatic rotary labeller Etol Mesal

Automatic rotary labeller BOPP-12
operational characteristics.
Product label: mineral water/energy.
Filling temperature: environment.
Bottles:
Pet: 350 ml/500 ml/1000 ml.
production capacity: 500 ml Pet 12,000 bottles per hour.
Specifications:
-linear Labeller for application of Bopp labels in cylindrical bottles.
-placement of labels.
-labels for nutrition and Servo Motor controlled by PLC.
-carbon steel Structure with epoxy paint.
-mixed machine components in stainless steel and carbon.
-stainless steel Locks with acrylic doors.
-Doors in acrícilico for monitoring the process.
-input and output sensors.
-quick change Kit allowing the use of different formats.
-equipment controlled by HMI frontal touchscreen.
-low running costs and easy maintenance.
-Possibility to label bottles full or empty.
-type Hot-Melt hot glue.
-traction System for synchronous belt, lower noise.
-air pressure 6 kg/cm ².
-Nordson gluing Head or Robatech.
-6 KW power consumption.
-Container cylindrical type Pet, PP, PE.
-12,000 Production time may vary depending on the size of the label and bottle.
-nut screw into the bottles.
-Coil on the outside of the machine, making it easy to Exchange.
-automatic braking System of the coil.
-minimum height of 35 mm label.
-maximum height of 160 mm label.
-minimum diameter of bottle 50 mm
-maximum diameter of bottle 100 mm.
-maximum height of the label on the bottle 260 mm.
-minimum height of the label on the bottle 10 mm.
1-kit for 330 ml bottle Exchange.
1-kit for 350 ml bottle Exchange.
1-bottle Exchange kit 1500 ml.
