Industrial chiller 150.000 Kcal Qualiterme
Industrial chiller 150.000 Kcal Qualiterme

Industrial chiller 150.000 Kcal Qualiterme

Need maintenance technician, revision and warranty? Click here.

Machine code:
177-481
 UNAVAILABLE

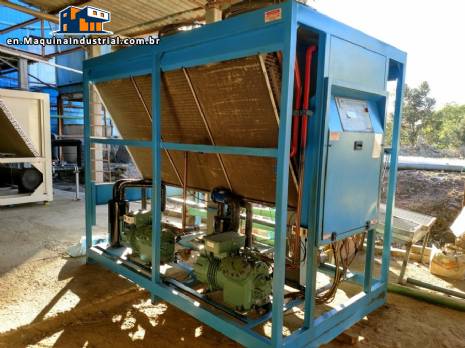

Industrial chiller.

Brand: Qualiterme.

Model: E 150.

Cooling tower.

Air.

Cooling circuits.

Nominal capacity: 150,000 KCAL / H at 10 ° C working.

Effective capacity 180,000 KCAL / H at 10 ° C working.

Voltage: 220 V three-phase / 380 three-phase / 440 three-phase.

Command: 24 V.

Compressor: 4 X SH137.

Type: SCROOL.

Brand: DANFOSS.

Evaporator.

Quantity: 04.

Type of plates.

Air condenser.

Quantity 04.

Type: Micro finned channel.

Fan.

Quantity 04.

Type: exhaust fan.

Airflow: 4 x 15 m³ / s.

Standard pump: 7.5 hp.

Quantity: 01.

Pressure: 2/3 bar.

Type: centrifuge.

Water flow: 45 m³ / h.

Special pump.

Water flow.

Volume Reservoir: 750 L.

Type: fiber insulation.

PU.

Structure type: carbon steel.

Paint: epoxy powder.

Color: green / gray;

Calculation temperature: 10 ° c.

Working temperature: 5 ° c to 15 ° c.

Condensing temperature: 40 ° c.

Coolant: 410 ecological.

Control of equipment: Microprocessor / digital electronics.

Total installed power: 65.4 kw.

Electronic central.

It also has several indications of malfunctions in the chiller due to misuse (inadequate power, improper installation location).

See below for some of the functions and monitoring of the control panel:

Its purpose is to show and monitor 17 temperatures at the same time:

Water inlet temperature.

4 x water outlet temperature.

4 x super cooling temperature.

4 x superheating temperature.

4 x temperature condensation.

The control unit receives information 100 times per second times four for each compressor shown on separate screens for better viewing (see configuration manual).

It also monitors 4 types of protection by motor compressor being NF signal, to the smallest error that will occur to enter a protection of the compressor. Here are some examples below:

Circuit breaker motor fails in each of the motors in the chiller.

Air Condensation: On AIR-COOLED models the micro channels are made of aluminum.


Brand:
Qualiterme

Components:
Danfoss

Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.







Visitation: Schedule date for visitation and check equipment availability. Merely illustrative images.
