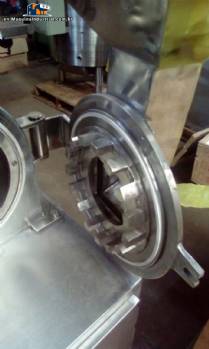

Universal disc mill in stainless steel |
Universal mill for herbs, cinnamon, pepper, salt, sugar and solid products that can be ground in the disc system and sieve.
Compact, high performance, all stainless steel unit with all parts installed in a single set, which is especially suitable for low space installations and low noise level.
The mill consists of a hammer turbine, which with high shear capacity, coupled with the mechanical design, optimizes the grinding process and prevents clogging of the sieve.
It has a system of filters and ventilation, to effect the efficiency of the process.
It can also be used with fibrous materials, such as cinnamon stick.
The internal ventilation system when grinding, favors the desired yield and fineness, as well as prevents the mesh of the screen.
Accompanies an extra sieve.
Technical specifications
Model: 250 B.
Capacity: 50 to 250 kg / h.
Noise Level: <85 decibels
Grinding grade: 20 to 120 mesh.
Engine: ¾ HP.
External dimensions: 1100 x 650 x 1500 mm.
Weight: 250 Kg. |
|
|
|
|
