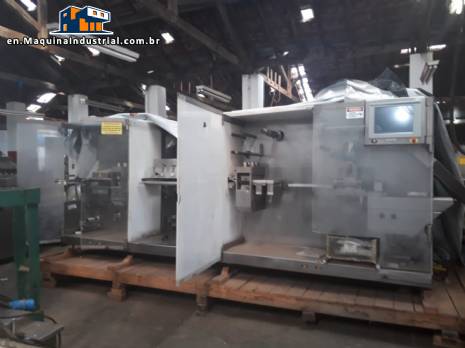

| Blister packaging machine Oystar Fabrima BP 5 |
|
Machine: The Oystar Fabrima.
Year of manufacture: 2008.
Model: BP 5.
Vision system.
The PLC program is running normally.
Note: Video of binding machine, panel operation, bubble forming modules operation, aluminum film press, mat, coils and scrap cutting (5 videos).
The interface and the industrial computer responsible for the interface work correctly, communication between PLC and computer is also ok.
The machine have high technologies such as:
- Optical fiber.
Servants, morotes.
- Festo pneumatic valves.
The command is Allen Bradley.
Conventional Engines Sew.
Reducers as well.
Inspector of blisters with tablets / tablets / capsules, pre - sealing Altec, model Pharma Inspector lite.
Inspector Overview:
- Optical cabinet.
- Handling device.
- Office cpu.
- Software program Phama Inspector.
- USB external connections (power and camera signal).
- Female 3-pin connector to power optical drive illumination.
- Inspections and tests to be carried out:
Inspection of product presence, absence, color and broken with lack.
Production:
Production: 45 cycles
150 Blister / minute
Second manual production:
Minimum: 22 cycles / minutes *
Maximum: 60 cycles / minutes *
Maximum: 35 cycles / minute *
* Varies with formatting.
Formats:
Width of the forming film: 170 mm.
Cover film width 160 mm.
External diameter of the forming coil: 400 mm.
Internal diameter of the forming coil: 70 to 76 mm.
Coil outer diameter: 240 mm.
Coil inner diameter: 70 to 76 mm.
Depth with preforming depending on the package: up to 10 mm - up to 25 mm.
Useful formations are: 110 mm x 150 mm.
Continuous cut with belt under the cut.
Technical film: PVC + ALU with few modifications ALU + ALU, machine can work with aluminum film.
Manual / NR -12.
In excellent condition with only 2 years of use.
Measures:
5 meters long.
2 meters wide.
2.30 meters high.
With manuals and technical catalogs:
Factory Tal View Machine Edition, installation guide, Rockwell Automation, manual and cd.
Cds:
- KEPServer Enterprise, 5 cds VersaView user interface, system support, system accessories / cloning.
Manual PowerFlex and cd powerflex 4 frn 5 and cd of technical information.
Manual Sew Eurodrive Reducers.
Ultra 3000 digital servo drives installation manual.
Installation guide:
- Compact expasion power supplies
- Compact 24 v dc Sink / Source input module.
- Compact 1769 - of2 (series b or later) analog output module.
- Compact solid state 24 v dc source output module.
- 1768 Compact Logix power supplies.
- Compact i / o high speed counter module.
- Compact logix ether net / ip communication module.
- Compact Logix Sercos interface module.
- Fiber Optic cable installation.
There are manuals that were part of the production system and equipment accessories to the machine.
The mechanical documentation has:
Operating manual with the following index:
- Personal safety.
- Technical safety measures.
- Security guards.
- emergency button.
- flashing mode.
- basic safety instructions.
- conditions of the machine.
- qualification.
- organization.
- machine safety.
- aid in the event of an accident.
- transport and alignment.
- Checking the request.
- carrying the machine.
- assembly and alignment.
- first cleaning.
- connections.
- Electrical connections.
- Compressed air connection.
- technical description.
- technical data.
- list of products.
- Blister design.
blister 1.
- design and operation.
- flashing mode.
- emergency button.
- work stations.
- operating diagram of the machine.
- location of the stations.
- Film coil forming.
- heating station.
- training station.
- Training film stretcher.
- product feed.
- manual feed.
- Planetary stirrer.
- aylward feeder.
- suction system.
- vision system.
- Product sensing sensor on the feed guide.
- Coverage Film Unwinder.
- photocell.
- Film splicing detector.
- Screening detector film training.
- Cover film splicing detector.
- sealing station.
- Film transport system and cooling.
- cutting station cutting station.
- retail rewinder.
- Retractable drop-in receiving mat.
- counter chech sensors.
- blister individualizer.
- transfer belt.
- transfer of blisters from the transfer belt.
- maintenance and service plan.
- general.
- synchronization run.
- handling and installation.
- Storage transport packaging.
- Cleanliness and appearance.
- service.
- cleaning.
- lubrication.
- adjustment points.
- zero point.
- Temperature calibration.
- exchange of formats.
- Movie Film Winder
- Training film winder.
- heating station.
- Thermocouple exchange.
- change the fuse.
- exchange of resistance.
- training station.
- formation of the cover film.
- alu-alum formation.
- procedure for the evaluation of training.
- stretcher of film of the formation station.
- manual or automatic feeding.
- suction system.
- change of guides.
- food area.
- pecking area.
- Cutting area.
- positioning of the photocell sensor.
- positioning of the photocell.
- sealing station.
- procedure for sealing evaluation.
- procedure for unlocking the sealing station.
- Film transport system.
- Fixed clamp or mobile sealing station.
- pecking station.
- cutting station.
- Changing and adjusting the flat mat belt.
- exchange of springs.
- life of the spring assemblies.
- access to the mechanical part behind the electrical panel.
- scheme of passage of the formation and cover film.
- procedure for replacing the ball collar assembly in forming and sealing stations.
- control station.
- turn on the machine.
- Switch off the machine.
- passwords.
- main screen.
- screen parameters.
- production.
- heating.
- machine.
- programmable.
- calibration.
- Screen maintenance.
- digital inputs and sound.
- Forced exits.
- configuration.
- configure workstations.
- temperature calibration screen.
- shift.
- analog.
- operation screen.
- Operation screen with flashing.
- recipe screen.
- warning messages.
- pneumatic digrams.
- spare parts.
- Spare parts.
The machine has little uptime, and was correctly stored, protected from malfunctions. |
Brand:
Fabrima, Masipack, Oystar
|
Components:
Allen-Bradley, Altec, Festo, Rockwell, SEW
|
Main applications:
Food industry
Manufacturing pharmaceutical field, drugs / pills
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
