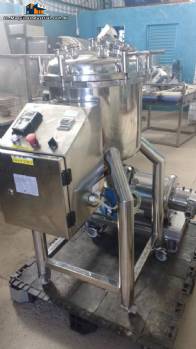

| Pressure reactor for manufacturing of hormones Pharmainox |
|
Pressure reactor for manufacturing of hormones.
Brand Name: Meteor, Pharmainox.
Specifications:
Useful / total capacity: 50 L.
Working pressure: 0.5 kgf / cm².
Design pressure: 1.0 kgf / cm².
Maximum permissible working pressure at (T.P): 0,5 kgf / cm².
Working temperature: 80 degrees Celsius.
Design temperature (T.P) 120 degrees Celsius.
Material: AISI 316 L.
Estimated weight of empty equipment: 96 kg.
Installed Power (Anchor / Agitator): 22 Kw.
Voltage: 380 V.
Rotation (Anchor / agitator): 1750 R.P.M.
Internal finishing: Mechanical polishing + electropolishing GR 320 / Ra <0.35.
Exterior finish: Mirrored mechanical polished gr 220.
Year: 2014.
Category: V.
Standard: ASME VIII Division 1 - Edition 2010 AD 2011.
Thermosyphon for reactor.
Brand: Pharmainox.
Useful capacity: 4 L.
Working pressure - Int / Ext: 0.75 kgf / cm².
Design pressure - Int / Ext: 1.1 kgf / cm².
Working Temperature - Int / Ext: 80 degree celcius.
Design temperature: - Int / Ext: 120 degree celcius.
Material of manufacturing: AISI 304.
Internal / external finishing: GR 320 + mechanical polishing.
Year: 2014.
Empty weight: 3.8 kg.
Components:
Weg electric motor.
Siemens Sinamics.
Controller Novus N1040. |
Brand:
Meteor, Pharmainox
|
Components:
Novus, Siemens, WEG
|
|
|
|
Main suggestions:
|
|
 |
Brand: Soleri
Pressure reactor for pharmaceutical, cosmetic and veterinary products.
Manufacturer brand: Soleri.
316 stainless steel reactor.
Origin: Cosmetic industry.
Total liter capacity: 12,000 L
With stirring system and heating jacket.... |
|
|
 |
Brand: FAE System
Pressure reactor for handling injectable human and possibly injectable animal medications (animal health industry).
With agitation in the lower part.
Manufacturer: FAE System.
Nominal capacity: 50 liters.
With Millipore Optiseal filter.
... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Components: WEG
Stainless steel pressure reactor.
Capacity: 1,100 L.
Jacked tank.
With motor, reducer, shaft and propeller.
Extra space for inserting accessories, bottom (with black screw-on cover photo 20)
304 stainless steel.
Conical bottom.
O... |
|
|
 |

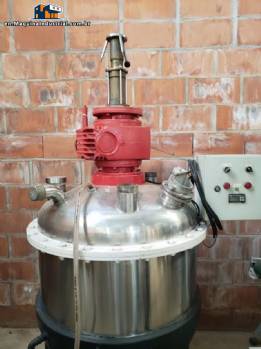

Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Brand: Consolid
Jacketed reactor with stainless steel resistance heating for laboratory.
Manufacturer/brand: Consolid.
Year: 2011.
Test pressure: 3 kgf / cm².
Maximum permissible working pressure: 2 kgf / cm².
Useful volume: 1.5 liters.
Total volum... |
|
|
 |

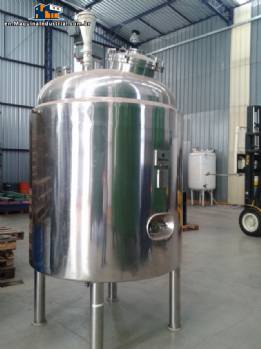

Brand: Starnox
Stainless steel reactor.
Manufacturer / brand: Starnox.
Approximate capacity: 1800 liters.
Manufactured in 2006.
The equipment has operated very little and has been stored since 2012.
Reaction of mineral oil with chemical reagent.
I... |
|
|
 |
Brand: Rodrinox
- Handling reactor.
- Brand: Rodrinox.
- Pressure equipment used for the manufacture of cream, ointment
And similar products.
- It has motor with reducer.
- Spindle shaft.
- Great construction.
- 316 stainless steel.
- Capacity ... |
|
|
 |
Pressure reactor in stainless steel.
Type bioreactor.
In great condition.
Capacity 200 liters.
Measures:
Height: 2,10 m.
Width: 0.85 m.
Length: 1,50 m.
With temperature sensor.
With inputs for oxygen sensor, PH and other in... |
|
|
 |
Brand: Jean Lieutaud
Pressure reactor for inks.
Brand name: Jean Lieutaud S.A.
Capacity: 10,000 L.
With two axes disks and anchors.
Engine: 40 hp and 10 hp.... |
|
|
 |

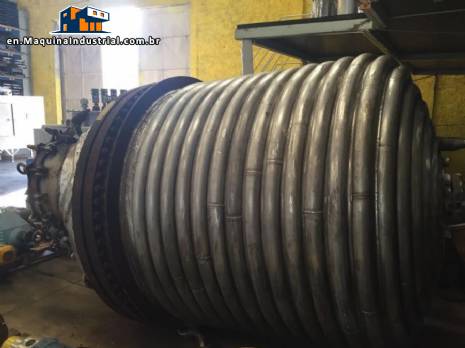

Brand: Pfaudler
Pressure reactor.
Capacity: 6,000 L.
in stainless steel.
in half of the equipment.
Brand: Pfaudler.... |
|
|
 |
Tacho / Reactor / Buller of 300 kg cladding.
Used in the food industry.
Main applications, creams, candies, candies, toppings, dulce de leche and products made under pressure and temperature.
Dimensions: 2 meters high by 1.20 wide.
Engine... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
Complete line for the manufacture of glycerinated soap.
Composed by:
Extruder with 3 drawing boards.
Brand Name: Mazzoni.
Capacity: 500 kg / h.
Electrical panel of the line.
Feed pump.
Brand Name: Geremia.
With variator.
Br... |
|
|
 |
Pyrolisis plant
Cycle capacity: 5 tons.
Cycle duration: 4 hours.
Usina worked only two years.
The plant works with pressure to degrade materials and promote their recycling, for example, tires and plastics become oil, liquid petroleum and... |
|
|
 |
Brand: Arno

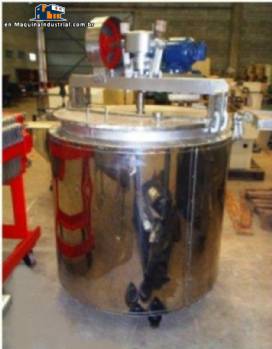

Reactor for Creams and ointments
State of equipment: used/reviewed
origin: lab. Pfizer
capacity: nominal capacity 850 Liters
dimensions: 1200 mm diam. 1950 mm Alt
weight: reactor to Creams and ointments
: Arno Brand power: 1 HP
rota... |
|
|
 |

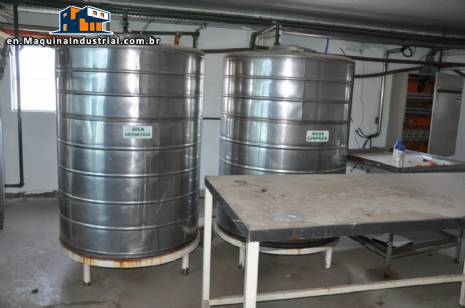

Set of cosmetic making machines consisting of:
Deionizers.
boiler Burner.
jacketed Reactor for Cras depilatórias.
reactors and water tanks in stainless steel.
shrinking Sleeve will steam Tunnel.
boiler.
electro electronic ... |
|
|
 |
Brand: Inoxil
- Pressure reactor in stainless steel 316 L with agitator and homogenizer.
- Literature capacity: 140 liters.
- Brand: Inoxil.
- Pressure equipment used for the manufacture of cream, ointment
And similar products.
- It has two engines... |
|
|
 |
Brand: Metalquim

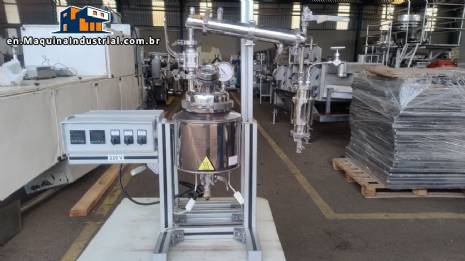

Medium pressure jacketed reactor for laboratory.
Manufacturer | Metalúrgica Metalquim brand.
Approximate capacity: up to 3 liters.
Equipment for simulations in high pressure conditions (over 5 bar) and temperatures above 300 ºC.
Made of 3... |
|
|
 |
Brand: Werjen
Stainless steel reactor distiller.
Manufacturer | brand: Werjen.
Approximate tank capacity: 200 liters.
Year: 2022.
Specific design for the client.
For essential oil extraction, solvent distillation, water distillation, small chemical ... |
|
|
 |
Brand: Max Machine
Components: WEG

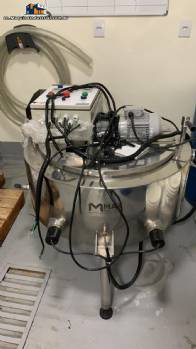

- Pan reactor tank jacketed in stainless steel.
Manufacturer: Max Machine.
With electric heating.
Approximate capacity: 100 liters.
With extractor hood and split lid.
With automatic stirrer with agitation carried out by a gear motor.
... |
|
|
 |

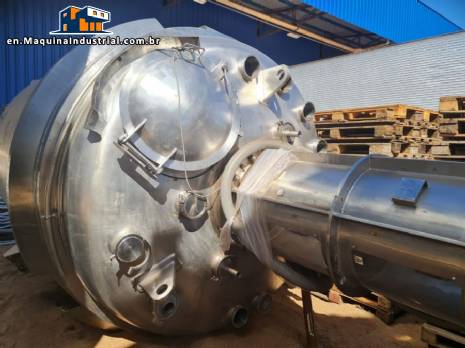

Components: Alfa Laval
316 L stainless steel reactor with internal electrostatic polishing.
For viscous products.
For batches up to 12 tons, depending on the product density.
Internal part stainless steel 316 L electrostatic polishing.
Model: RD 100 - P120 - 15... |
|
|
 |
Brand: Rodrinox
Pressure reactor.
Brand Name: Rodrinox.
Capacity: 500 kg.
Quantity: Two unit of equipment.
Pressure reactor.
Brand Name: Rodrinox.
Capacity: 1,200 kg.

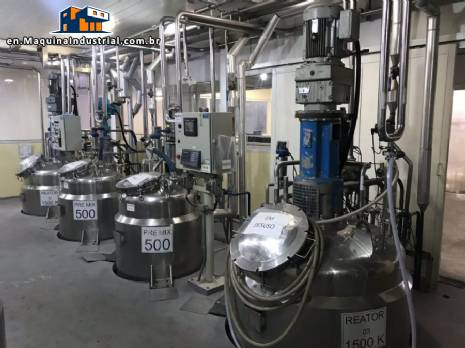

Pressure reactors.
Brand Name: Rodrinox.
Capacity: 1,500 kg.
Quantity... |
|
|
 |
Stainless steel reactor 1250 l.
thick Plate with agitator and reducer.
With support for fixing on mezzanine.
Body and stainless steel shaft first.
Outer jacket in carbon steel.
Diameter: 1 m
height: 1.60 m.... |
|
|
 |

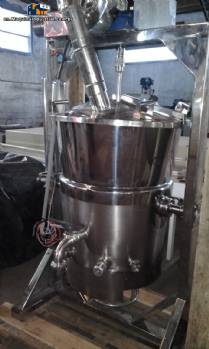

Brand: Max Machine
