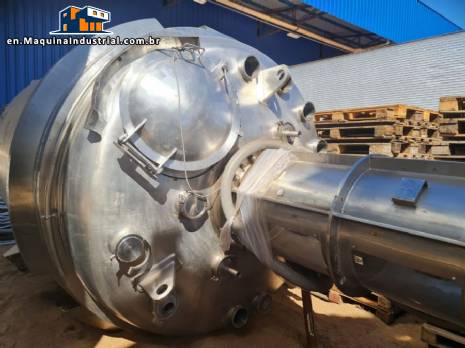

| Reactor with internal electrostatic polishing 316 L stainless stee |
|
316 L stainless steel reactor with internal electrostatic polishing.
For viscous products.
For batches up to 12 tons, depending on the product density.
Internal part stainless steel 316 L electrostatic polishing.
Model: RD 100 - P120 - 1550.
Electromechanical valve, 8-inch pneumatic actuator.
Alfa Laval reinforced butterfly valve due to high pressure.
Hatch with lock.
Shirt tickets.
Spray ball Alfa laval.
Mechanical seal.
Complete valve assembly.
Motor reducer.
Break waves.
upper part where the hatches have protection.
Stirring blades, 316L electro-polished stainless steel.
Double castle for viscous products.
Board information:
Engine: 100 HP.
Engine RPM: 1783 r.p.m.
It works with 12 ton batch cosmetics. |
|
|
Components:
Alfa Laval
|
|
|
|
Other similar equipment for research results
:
|
|
 |
Components: Cestari, WEG
Stainless steel jacketed tank with agitation mixing system.
Reactor tank for viscous foods, human and pet cosmetics, sanitizers, and other products and industries that work with 304 stainless steel.
The tank has a jacket, with "serpentine tube ... |
|
|
 |
Brand: ALIC
Benchtop heated mixing reactor tank with jacket, made of stainless steel.
Manufacturer | Brand: ALIC.
Approximate volume: 30 liters.
Approximate internal dimensions:
Height: 310 mm.
Diameter: 380 mm.
Voltage: 220 V.
Benchtop reac... |
|
|
 |
Benchtop mixing reactor tank heated by jacket and electric resistance.
Approximate total volume: 28.9 L.
Internal dimensions:
Internal height: 300 mm.
Diameter: 350 mm.
Benchtop reactor for cosmetics, food, chemical and other applicati... |
|
|
 |
Brand: FAE System
Pressure reactor for handling injectable human and possibly injectable animal medications (animal health industry).
With agitation in the lower part.
Manufacturer: FAE System.
Nominal capacity: 50 liters.
With Millipore Optiseal filter.
... |
|
|
 |
Brand: Rodrinox
Components: WEG
Open reactor tank for mixing and homogenizing products.
Brand: Rodrinox.
With 3 stirring systems.
Mixing system 1
With motor and reducer, side and lower blades and scrapers.
2 mixing system.
With motor and reducer with 3 helix on th... |
|
|
 |
Brand: Kroma
Components: SEW-Eurodrive
Pressure reactor in 316 L stainless steel internal and 304 stainless steel external, with a total capacity of 1,350 L.
Manufacturer: Kroma.
Capacity: 1,000 L.
Reactor with heating on the side of the lower part, pipe/cane type.
With motor ... |
|
|
 |
Brand: SM Carvalho
Grain deactivation reactor with stainless steel internal lining.
Approximate capacity: up to 10 tons per hour.
Manufacturer: SM Carvalho.
Design: ASME SEC VIII DIV 1-2023 PMTA.
Body: 2.5 kg/cm² PMTA.
Jacket: 5 kg/cm² PTH.
Body: 3.8 ... |
|
|
 |
Brand: TecnoClima
Canning line for carbonated and non-carbonated beverages.
For 269 ml, 350 ml, 355 ml and 473 ml cans.
Composed of:
- Carbonator with tank pump and heat exchanger.
Approximate capacity: up to 3,000 liters per hour.
- Stainless steel thr... |
|
|
 |
Agitation tank and heating reactor in AISI 304 stainless steel.
Volume: 500 L.
Features
Internal body in 2.5 mm sheet metal and external in 1.5 mm sheet metal.
Internal polished sanitary finish and external brushed sanitary finish.
50 ... |
|
|
 |
Stainless steel reactor jacketed mixing tank.
Total volume: 2,000 L.
Features.
Internal body in 2.5 mm sheet metal and external in 1.5 mm sheet metal.
ASME 2:1 torispherical top and bottom.
Polished sanitary internal finish and brushed... |
|
|
 |
Jacketed chemical reactor.
Approximate capacity: 500 liters.
Year of manufacture: 2009.
Stainless steel reactor internally.
It was only used for testing. It has been stopped for 15 years.
For products such as pre-polymer.
It has an ... |
|
|
 |
Professional with more than 15 years of experience in chemical industry regulations and systems.
It has a company of industrial, environmental, certifications and NBR Standards.
PROFESSIONAL SUMMARY
Professional with vast experience in Managem... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Brand: WEG
Electric motor.
Manufacturer: WEG.
Power: 9.2 kW (12.5 HP).
Rotation: 873 rpm (8 poles).
Voltage: 220 / 380 / 440 V.
Year: May 13, 2010.
Frequency: 60 Hz.
Protection rating: IP55.
Duty cycle: S1 (continuous duty).
Applicati... |
|
|
 |

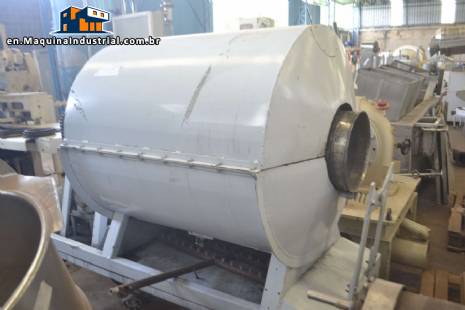

Grain roaster.
With internal stainless steel drum and external carbon steel.
Approximate Dimensions:
Drum Diameter: 800 mm.
Drum Length: 1.10 m.
Diameter Mouth: 300 mm.
Total Length: 2.05 m.
Total Width: 1.10 m.
Total Height: ... |
|
|
 |
Brand: Fabrimak
Peanut Roasting Line for Bulk Products.
Manufacturer | Brand: Fabrimak.
Composed of an industrial roaster, conveyor belts, grain cooler, and storage silos.
- Industrial roaster for peanuts, grains, and nuts.
Approximate capacity: up to 25... |
|
|
 |
Brand: Werjen
Stainless steel reactor distiller.
Manufacturer | brand: Werjen.
Approximate tank capacity: 200 liters.
Year: 2022.
Specific design for the client.
For essential oil extraction, solvent distillation, water distillation, small chemical ... |
|
|
 |
Jacketed reactor with a capacity of 300 litres with capacitor-external carbon steel and stainless steel internal-with motor and reducer.
... |
|
|
 |
Brand: Intermec
Industrial seasoning injector.
With seasoning mixer.
Brand: Intermec.
Model: AMF 900.
Seasoning mixer.
Injector: Approximate production of up to 8,000 kg / hour.
Mixer: Capacity of up to 1,000 liters.
Construction: In stainless s... |
|
|
 |
Fruit and vegetable dehydrator.
MS-G Model.
Electric heating 220 V
automatic temperature control.
20/120° C thermostat.
Gas heating (LPG).
Tubular burner drawer system for faciitar lights.
Manual temperature control through registry adj... |
Others suggested equipment for you:
|
|
 |
Brand: Implantação Engmaq
Stainless steel tank with serpentine.
Brand: Implantation Engmaq.
Capacity: 35 liters.
Area: 0,30 m2.
Pressure Design: Side / Serpentine - 3/5 Bar / man.
Design temperature: Side / Serpentine - 80/80 C.
Operating pressure: Side / Se... |
|
|
 |
Brand: Tirelli
Imported Italian bottling line, threading and labelling, consisting of:
-stainless steel pneumatic linear Tirelli Filling with 4 nozzles.
Model: GVJA.
-Rosqueadora stainless steel bottles, flasks for pneumatic Tirelli.
Model: NEBEL 2 t.... |
|
|
 |
Brand: Rodighero
Floor type Bundling with sealing and tunnel trainer.
Rodighero
Manufacturer Machine automatic monoblock baler ER 400.
Used for beverages, foods and chemicals (for example: SOAP, detergent and paint);
cutting and automatic sealing System with ... |
|
|
 |
The machine is part of a line for production of SOAP g. Mazzoni.
Mat set:
1.80 m mat press input.
2.00 m mat press output.
8.00 m mat cutter output.
7.50 m mat return refining extruder.
Note: Uses for transportation of product... |
|
|
 |
Brand: Serpack
Components: Atos, WEG
Vertical powder wrapping machine
Brand Name: Serpack.
Model: SPK 250.
Machine with panel.
Inverter Weg CFW 8 and Weg CFW 10.
Servo driver / Servo converter / Servo converter Weg SCA 04.
With servo motor, internal thread of dosage an... |
|
|
 |
Stainless steel tank.
150 litre capacity.
no motor.... |
|
|
 |
Brand: Jormary
Container with 1 container nozzle.
Brand: Jormary.
Model: ES1 Plus.
Stainless steel equipment, polished, including inside the lung funnel, facilitating hygiene.... |
|
|
 |
Brand: Riva
Compressor rotary press tablets.
Brand Name: Riva.
Model: D-14.
Equipment imported from Argentina.
Machine in excellent condition.... |
|
|
 |
Stainless steel mixer.... |
|
|
 |
Stainless steel tank with 1,500 liters with motor and reducer.
- Tank size 1,20 x 1,20 x 3,14 x 1,40: 4 = 1582 liters = 1500 liters.
- Engine of 5vc 1725 rpm.
- Motor of 220 v / 380v / 440 v.... |
|
|
 |
Stainless steel tank with lid.
100 litre capacity.
no motor.... |
|
|
 |
Brand: Imarvil
Simple shirt tank in stainless steel and with mixer.
500 liters capacity.
Brand: Irmavil.... |
|
|
 |
Brand: Niva Pack
Components: Allen-Bradley
Vertical powder packer with volumetric system
Brand Name: Niva Pack.
Model: Absolut 350.
With pneumatic system of dosage of trough.
Machine with shape and thread.
Electric panel.
Allen Bradley PanelView 300 Micro Vision Panel.
Al... |
|
|
 |
Coater in stainless steel tablets.
Type: Drageadeira.
With retractable head.
For approximately 150 L.
With two spray coating.... |
|
|
 |
Brand: Posimat
Positioner from plastic bottles.
Brand: Posimat.
Model: Master-20.
Serial: 8764-MXI.
Uses all kind of bottles either light or heavy, cylindrical, oval or asymmetrical, with short necks or even without a neck, as covers plans elements ... |
|
|
 |
Brand: Inoxil
- Pressure reactor in stainless steel 316 L with agitator and homogenizer.
- Literature capacity: 140 liters.
- Brand: Inoxil.
- Pressure equipment used for the manufacture of cream, ointment
And similar products.
- It has two engines... |
|
|
 |
Filter sparkler.
Stainless steel.
Capacity: 50 liters.
With pump.... |
|
|
 |
Brand: G.C.Neto
Cartridge stamper.
Manufacturer / brand: C. G. Neto.... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
G.Mazzoni soap extruder intermediary.
- To extrude soap and preliminarily homogenize the dough.
- With 300 mm thread and cutting system.
- Measure 2,10 in length x 1,30 in width.... |
|
|
 |
Brand: Chavantes, Exteec
Line for breeding bird feed.
Model: EX-500.
Year: 2011.
... |
|
|
 |
Brand: Fanem
- Fanem 345 climate chamber
- Stainless steel inner chamber
- Volume of 270 liters;
- Microprocessed control;
- Temperature: 10 ° to 75 ° C;
- Internal humidity controlled between 35% and 95%;
- Internal circulation of forced air;
... |
|
|
 |
Dryer Spray Dryer in stainless steel.
Drying capacity between 100 and 150 kg hour.
It has nozzle because it is high pressure.
It was used in the food industry.
Drying capacity between 100 and 150 kg hour.
Unbranded equipment was assemb... |
|
|
 |
Brand: Promaler
Components: Atos, Melton
Floor/Encartuchadeira Promaler.
Model: EVI.
The
in: 2007.
Working pressure 6 BAR-220 V voltage
60 mm Format with clp actions.
Coleiro Meltron brand model Spain 4 kg.
Approximate capacity up to 75 packages per minute.
Measu... |
|
|
 |
Brand: Polienva Movitron
- Pneumatic dosing machine.
- Stainless steel.
- Brand: Polienva Movitron.... |
|
|
 |
Brand: Tecnal
- Stove for sterilization and drying.
- Manufacturer: Tecnal.
- Model: TE 397/5... |
|
