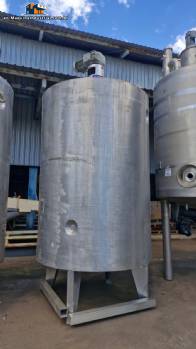

| 5,000 liter stainless steel mixing tank APV |
|
Stainless steel mixing tank.
Manufacturer | Brand: APV.
Approximate capacity: 5,000 liters.
Data on the nameplate:
Design pressure (kgf/cm²): body 1.2 | jacket 5.0.
Working temperature: Body 130 °C | jacket 120 °C.
Hydraulic test pressure (kgf/cm²): body 1.7 | jacket 7.0.
Working pressure (kgf/cm²): body 0.2 to 0.5 | jacket 4.0.
Test temperature: body and jacket at ambient temperature °C.
Empty weight: 1850 kg.
Approximate dimensions:
Total height with reducer: 3,970 mm.
Tank body height: 2,600 mm.
Leg height: 560 mm.
Outer diameter: 1,860 mm. |
